Liebherr

LR 1100

Crawler Crane

Power Measured @
1,900 rpm
All crawler cranes

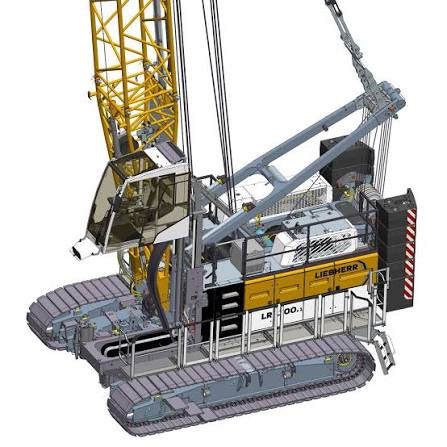

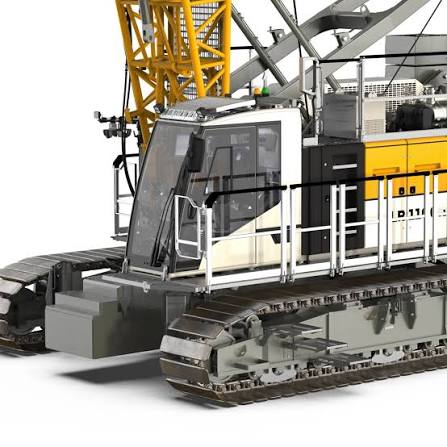

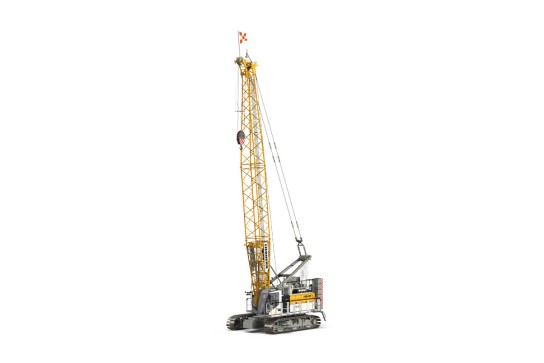

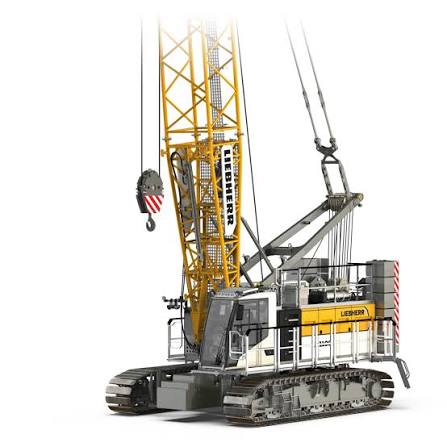

Liebherr LR 1100 Crawler Crane
1 / 5
Image 1 of 5
Image: liebherr.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight242,100 lb
Line pull - Main winches26,500 lb
Rope diameter- Main winches26 in
Drive speed - Crawlers0.8 mph
Luffing jib48 sec from 15 to 78 to 78 degrees
Luffing Line pull23,150 lb
Luffing Rope diameter1 in
Rope speed - Main wiches5.3 mph
Track pads - Crawlers35 in
Diameter - Main winches22 in

Engine

Engine specifications
Power Measured @1,900 rpm
Gross Power536.0 hp
Engine TypeLiebherr D 9408 TI-E
Emission Tier LevelEPA / CARB Tier 2 and 97/68 EC Stage II

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius115 in
Transport Width200 in
Transport Height172 in
Transport Length467 in
Operating Width103 in

Transmission

Transmission specifications
Working speed5,076 psi

Undercarriage

Undercarriage specifications
Ground Pressure16 psi

Fluid Capacities

Fluid Capacities specifications
Fuel Tank211.0 gal
Hydraulic oil tank217.0 gal
Rope capacity - Main winches19,200 in

Boom

Boom specifications
Swing Speed5 rpm
