Kobelco

CK1000

Crawler Crane

Max Lift Capacity
199,959 lb
Power Measured @
2,000 rpm
All crawler cranes

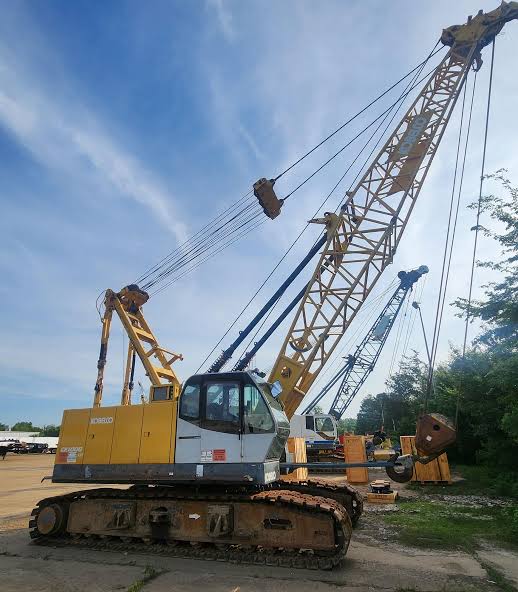

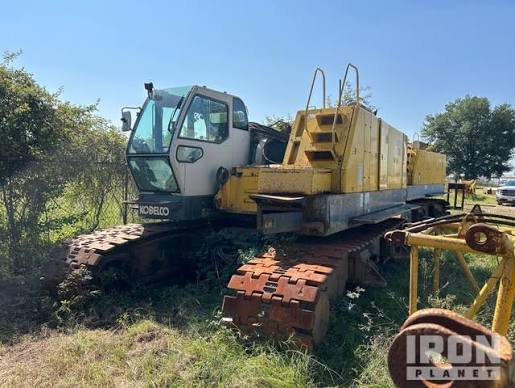

Kobelco CK1000 Crawler Crane
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight173,000 lb
Fuel Capacity105.7 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity118.9 gal

Engine

Engine specifications
Engine Model6D24-TEG
Power Measured @2,000 rpm
Gross Power265.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm
Max Torque784 lb-ft
Engine MakeMitsubishi
Alternator150 A
Battery2

Dimensions

Dimensions specifications
Ground Clearance16 in
Transport Width143 in
Transport Height44 in
Gradeability40.0 %

Undercarriage

Undercarriage specifications
Width of Shoes36 in
Number of Shoes per Side66
Ground Pressure11 psi

Boom

Boom specifications
Max Lift Capacity199,959 lb
