LiebherrLiebherr
LR614
Crawler Loader
36 specifications
1 / 5

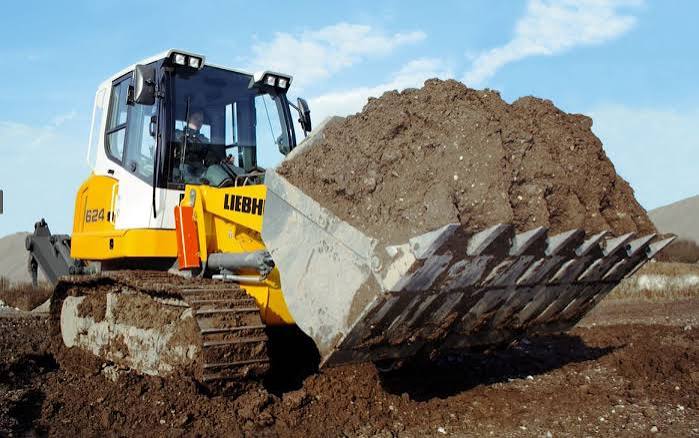

Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 37,276 lb |
|---|---|
| Bucket Capacity - struck | 2.39 yd³ |
| Max Speed | 6.2 mph |
| Fuel Capacity | 64.2 gal |
| Static Tipping Load | 26,153 lb |
| Cooling System Fluid Capacity | 9.6 gal |
| Hydraulic System Fluid Capacity | 20.7 gal |
| Final Drive Fluid Capacity - each | 4.0 gal |
| Engine Oil Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D934 S A6 |
|---|---|
| Displacement | 391 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 143.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged w/ Aftercooler |
Hydraulic System
| Pump Flow Capacity | 42.8 gal/min |
|---|---|
| Lower Time | 2.7 s |
| Raise Time | 6.3 s |
| Relief Valve Pressure | 3,770 psi |
| Dump Time | 1.3 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 125 in |
| Width to Outside of Tracks | 89 in |
| Length with Bucket on Ground | 250 in |
| Clearance at Full Height and Dump | 113 in |
| Reach at Dump Height | 42 in |
| Length to Front of Track | 181 in |
Undercarriage
| Length of Track on Ground | 98 in |
|---|---|
| Track Gauge | 69 in |
| Track Shoe Width | 20 in |
| Ground Pressure | 10 psi |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 39 |
