Liebherr

PR734 XL

Crawler Dozer

Operating Weight
47,406 lb
Max Speed - Forward
6.9 mph
Gross Power
200.0 hp
Net Power
197.0 hp
All crawler dozers

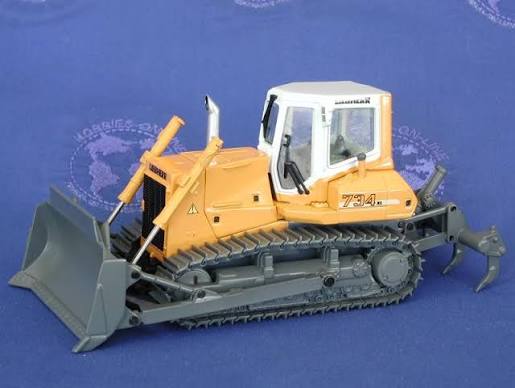

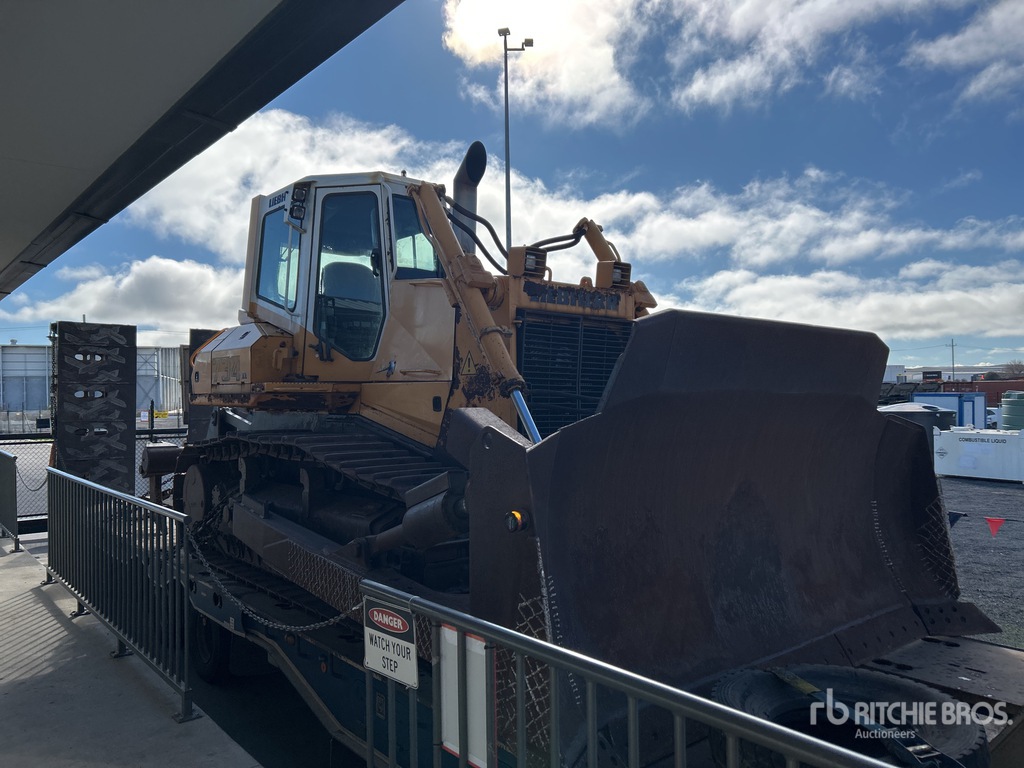

Liebherr PR734 XL Crawler Dozer
1 / 5
Image 1 of 5
Image: rbauction.co.uk

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,406 lb
Fuel Capacity116.3 gal
Cooling System Fluid Capacity11.4 gal
Final Drives Fluid Capacity3.7 gal
Engine Oil Capacity5.9 gal
Hydraulic Fluid Capacity42.8 gal
Operating Voltage24 V
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine ModelD 926 TI-E
Displacement610 in³
Power Measured @1,800 rpm
Gross Power200.0 hp
Net Power197.0 hp
Number of Cylinders6
AspirationDirect injection turbo-charged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity55.3 gal/min
Relief Valve Pressure2,900 psi
Pump Typeswash plate piston pump

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab130 in
Length of Track on Ground128 in
Width Over Tracks108 in
Length w/ Blade235 in
Length w/o Blade169 in

Transmission

Transmission specifications
Max Speed - Forward6.9 mph
Max Speed - Reverse4.8 mph
Transmission TypeHydrostatic travel drive and control
Number of Forward Gears3
Number of Reverse Gears2

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Number of Track Rollers per Side8
Standard Shoe Size24 in

Standard Blade

Standard Blade specifications
Width133 in
Height55 in
Capacity7.70 yd³
