Liebherr

PR736 LITRONIC

Crawler Dozer

Operating Weight
54,234 lb
Net Power
201.2 hp
All crawler dozers

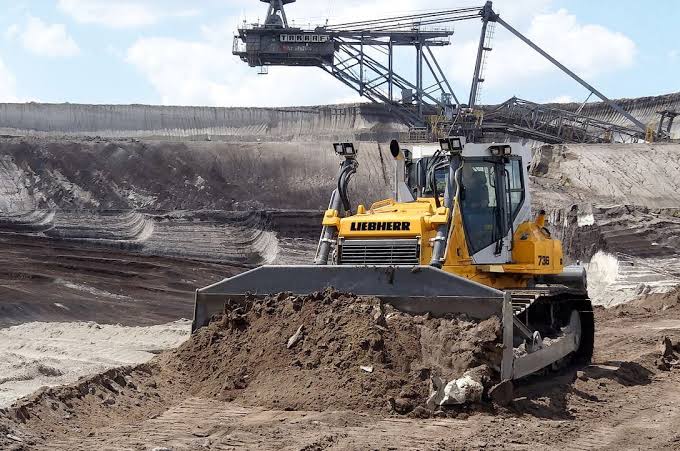

Liebherr PR736 LITRONIC Crawler Dozer
1 / 5
Image 1 of 5
Image: power-equip.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,234 lb
Fuel Capacity113.6 gal
Cooling System Fluid Capacity10.9 gal
Final Drives Fluid Capacity5.9 gal
Engine Oil Capacity7.7 gal
Hydraulic Fluid Capacity29.4 gal
Operating Voltage24 V
Alternator Supplied Amperage140 A

Engine

Engine specifications
Engine ModelD 934 A7 Emission regulations EPA /CARB Tier 4f
Displacement427 in³
Power Measured @1,800 rpm
Net Power201.2 hp
AspirationTurbochanged
Cooling systemHydrostatic fan drive

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity54.7 gal/min
Pump TypeSwash plate piston pump

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab128 in
Length of Track on Ground111 in
Width Over Tracks95 in
Track Gauge73 in

Transmission

Transmission specifications
Max Speed - Reverse2.5 mph
Transmission TypeInfinitely variable hydrostatic travel drive independent drive for each track

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Number of Carrier Rollers per Side2

Standard Blade

Standard Blade specifications
Width144 in
Height53 in
Capacity6.20 yd³
