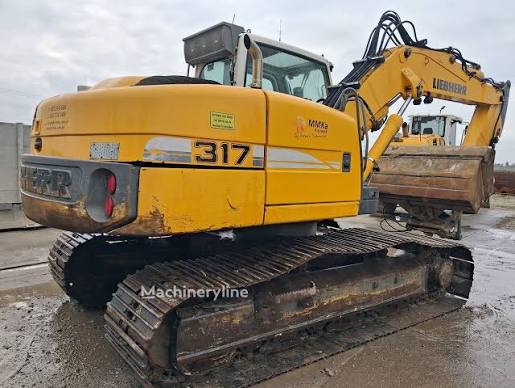

Liebherr
R317
- Operating Weight
- 39,022 lb
- Max Digging Depth
- 215 in
- Max Digging Depth
- 223 in
- Net Power
- 117.0 hp
1 / 5
Image 1 of 5
Specifications
62 data points
Operating Specifications
| Operating Weight | 39,022 lb |
|---|---|
| Fuel Capacity | 76.7 gal |
| Hydraulic Pump Flow Capacity | 78.5 gal/min |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | BF4M1013EC |
|---|---|
| Displacement | 293 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 117.0 hp |
| Aspiration | Turbo-charged |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 126 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 103 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Track Gauge | 79 in |
|---|---|
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 215 in |
|---|---|
| Max Reach Along Ground | 347 in |
| Max Loading Height | 280 in |
| Max Cutting Height | 390 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 115 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 223 in |
|---|---|
| Max Cutting Height | 396 in |
| Max Loading Height | 285 in |
| Max Reach Along Ground | 355 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 117 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 230 in |
|---|---|
| Max Cutting Height | 4,035 in |
| Max Loading Height | 292 in |
| Max Reach Along Ground | 362 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 121 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 245 in |
|---|---|
| Max Cutting Height | 410 in |
| Max Reach Along Ground | 374 in |
| Max Loading Height | 298 in |
| Shipping Length of Unit | 343 in |
Boom/Stick Excavator Option 5
| Max Digging Depth | 220 in |
|---|---|
| Max Reach Along Ground | 343 in |
| Max Cutting Height | 350 in |
| Max Loading Height | 239 in |
| Shipping Height of Unit | 119 in |
| Shipping Length of Unit | 341 in |
Boom/Stick Excavator Option 6
| Max Digging Depth | 226 in |
|---|---|
| Max Reach Along Ground | 350 in |
| Max Cutting Height | 355 in |
| Max Loading Height | 243 in |
| Shipping Length of Unit | 341 in |
| Shipping Height of Unit | 121 in |
