Liebherr

R984C

Mini Excavator

Max Digging Depth
313 in
Gross Power
710.0 hp
All mini excavators

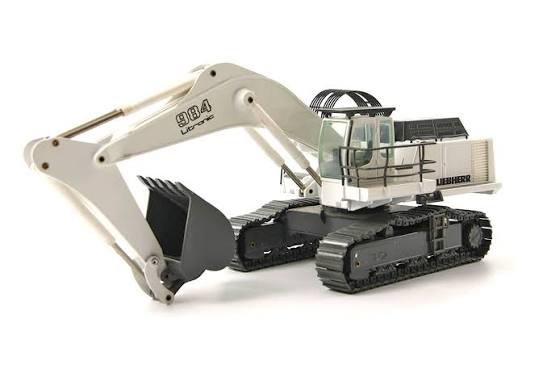

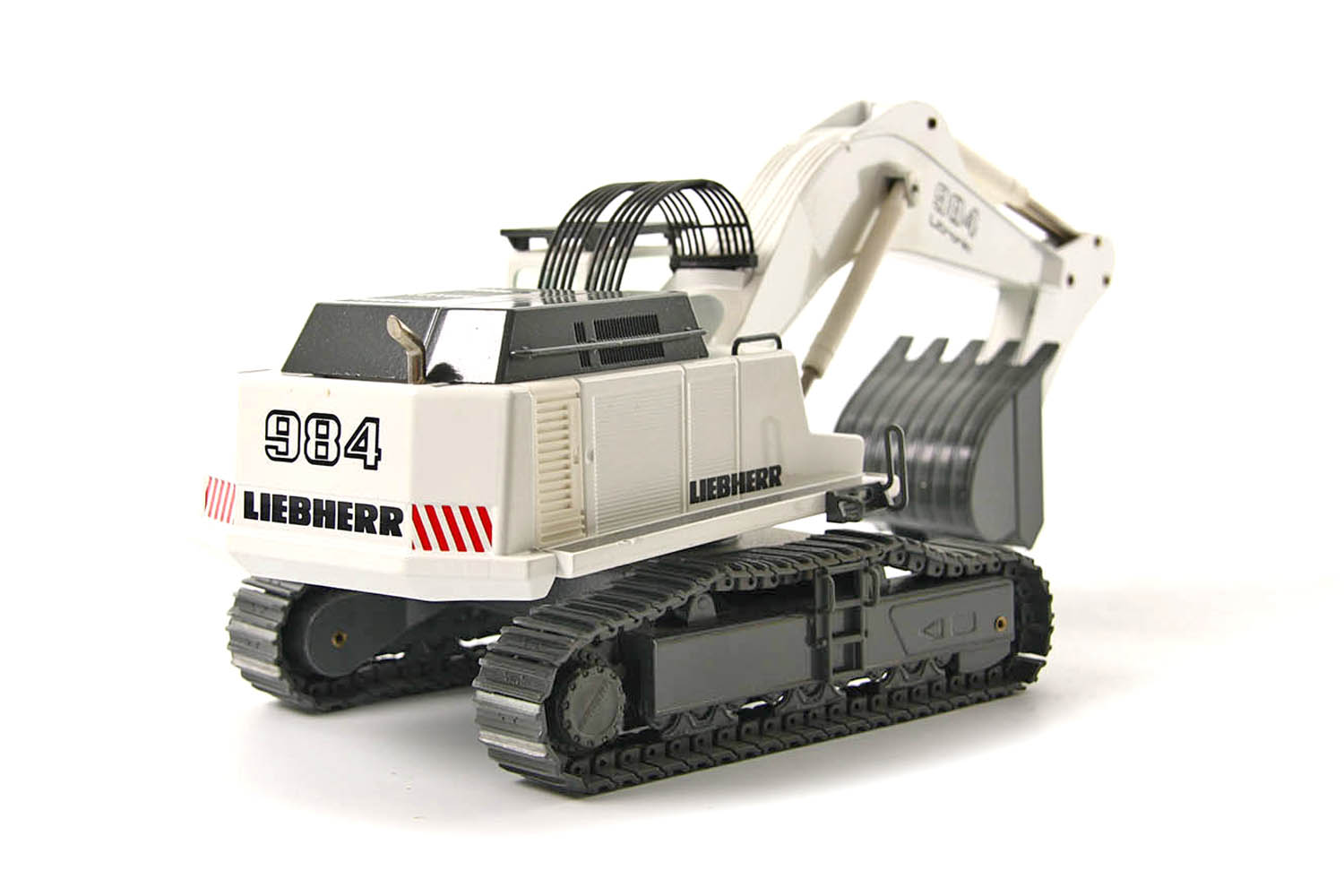

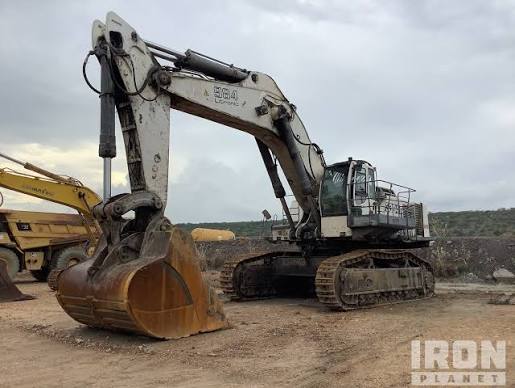

Liebherr R984C Mini Excavator
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

106 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity418.8 gal
Hydraulic Pump Flow Capacity124.7 gal/min
Hydraulic System Fluid Capacity438.6 gal
Hydraulic System Relief Valve Pressure4,931 psi
Operating Voltage24 V
Alternator Supplied Amperage100 A
Swing Speed5 rpm

Engine

Engine specifications
Engine ModelQSK-19 C 750
Displacement1,153 in³
Power Measured @2,100 rpm
Gross Power710.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance35 in
Height - Top of Cab176 in
Length of Track on Ground199 in
Width to Outside of Tracks191 in
Removal Counterweight Clearance73 in
Digging Depth480 in
Digging Reach480 in
Upper Structure Ground Clearance73 in
Length of Tracks256 in
Height of Tracks70 in

Undercarriage

Undercarriage specifications
Ground Pressure25 psi
Number of Track Rollers per Side9
Max Travel Speed1.9 mph
Shoe Size24 in
Number of Carrier Rollers per Side2
Drawbar Pull196,033 lb
Number of Upper Rollers2
Loading Shovel Operating Weight272,932 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure26 psi
Number of Lower Rollers9
Backhoe Shoe Width 120 in
Tail Swing Radius190 in
Backhoe Shoe Width 224 in
Backhoe Ground Pressure - Shoe 226 psi
Backhoe Operating Weight - Shoe 2261,468 lb
Backhoe Shoe Width 330 in
Backhoe Ground Pressure - Shoe 321 psi
Backhoe Operating Weight - Shoe 3264,114 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth313 in
Max Reach Along Ground540 in
Max Loading Height362 in
Shipping Length of Unit585 in
Max Cutting Height552 in
Shipping Height of Unit223 in

Bucket

Bucket specifications
Reference Bucket Capacity9.19 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed5 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth356 in
Max Cutting Height577 in
Max Loading Height386 in
Max Reach Along Ground581 in
Shipping Height of Unit248 in
Shipping Length of Unit564 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth365 in
Max Cutting Height592 in
Max Loading Height402 in
Max Reach Along Ground599 in
Shipping Length of Unit641 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth408 in
Max Cutting Height619 in
Max Loading Height427 in
Max Reach Along Ground641 in
Shipping Length of Unit617 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth493 in
Max Cutting Height632 in
Max Reach Along Ground715 in
Max Loading Height444 in
Shipping Height of Unit263 in
Shipping Length of Unit685 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth536 in
Max Cutting Height654 in
Max Reach Along Ground756 in
Max Loading Height466 in
Shipping Height of Unit276 in
Shipping Length of Unit678 in

Loading Shovel

Loading Shovel specifications
Max Dig Depth150 in
Max Dig Reach426 in
Max Cutting Height367 in
Max Dump Height350 in
Loading ShovelShovel Attachment
Height to Top of Boom - shovel214 in
Overall Length - shovel611 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth313 in
Max Cutting Height552 in
Max Dump Height362 in
Max Reach on Ground540 in
Height to Top of Boom223 in
Overall Length585 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth356 in
Max Cutting Height577 in
Max Dump Height386 in
Max Reach on Ground581 in
Height to Top of Boom248 in
Overall Length564 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth365 in
Max Cutting Height592 in
Max Dump Height402 in
Max Reach on Ground599 in
Height to Top of Boom230 in
Overall Length641 in

Backhoe Boom / Stick 4

Backhoe Boom / Stick 4 specifications
Max Dig Depth408 in
Max Cutting Height619 in
Max Dump Height427 in
Max Reach on Ground641 in
