Liebherr
Hitachi
EX5500-5
Mini Excavator
46 specifications
1 / 5

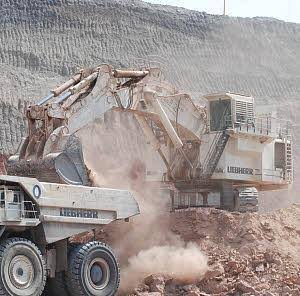

Image 1 of 5
Specifications
85 data points
Operating Specifications
| Operating Weight - 6wd | 972,001 lb |
|---|---|
| Fuel Capacity | 2,641.5 gal |
| Hydraulic Pump Flow Capacity | 95.4 gal/min |
| Hydraulic System Fluid Capacity | 800.4 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 240 A |
| Standard bucket capacity- SAE | 34.70 yd³ |
| Shovel Capacity | 34.70 yd³ |
Engine
| Engine Model | MTU 16 V 4000 E 20 (Tier 1) |
|---|---|
| Displacement | 3,967 in³ |
| Power Measured @ | 1,800 rpm |
| Aspiration | turbocharged |
| Bore | 7 in |
| Stroke | 8 in |
| Engine Type | 16 cylinder turbocharged V-engine after-cooled |
| Alternator | 240 A |
| Air cleaner | Dry-type air cleaner with pre-cleaner with automatic dust ejector primary and safety elements |
| Rated Engine Speed | 1,800 rpm |
| Cooling method | Fans driven via hydraulic piston motor |
| Rated Power | 2,145.7 hp |
Hydraulic System
| Maximum system pressure | 4,641 psi |
|---|---|
| Pump Flow | 381.5 gal/min |
Dimensions
| Ground Clearance | 46 in |
|---|---|
| Height - Top of Cab | 348 in |
| Wheelbase | 264 in |
| Overall Width | 274 in |
| Length of Track on Ground | 264 in |
| Tail Swing Radius | 260 in |
| Width to Outside of Tracks | 275 in |
| Removal Counterweight Clearance | 103 in |
| Digging Depth | 348 in |
| Digging Reach | 348 in |
| Track Width | 221 in |
| Overall length - bucket level on ground | 772 in |
| Overall height with ROPS | 347 in |
Undercarriage
| Ground Pressure | 36 psi |
|---|---|
| Track Gauge | 221 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 1.7 mph |
| Shoe Size | 47 in |
| Number of Carrier Rollers per Side | 3 |
Fluid Capacities
| Fuel Tank | 2,641.5 gal |
|---|---|
| Hydraulic system | 1,690.6 gal |
| Hydraulic Tank | 1,035.5 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 340 in |
|---|---|
| Max Reach Along Ground | 701 in |
| Max Loading Height | 414 in |
| Shipping Length of Unit | 773 in |
| Max Cutting Height | 642 in |
| Shipping Height of Unit | 359 in |
| Max.Dumping Height | 414 in |
| Boom/Stick Option (HEX) 1 | 10.00 m (32.81 ft) |
| Bucket Digging Force - ISO | 263,027 lb |
| Maximum Reach at Ground Level | 701 in |
| Breakout force - ISO | 292,252 lb |
| Ground Pressure | 36 psi |
| Max. teeth height | 7,702 in |
| Stick length | 178 in |
Bucket
| Reference Bucket Capacity | 34.70 yd³ |
|---|---|
| Maximum Bucket Capacity | 34.70 yd³ |
| Minimum Bucket Capacity | 31.40 yd³ |
Swing Mechanism
| Swing Speed | 4 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 355 in |
|---|---|
| Max Cutting Height | 650 in |
| Max Loading Height | 422 in |
| Max Reach Along Ground | 719 in |
| Shipping Height of Unit | 355 in |
| Shipping Length of Unit | 792 in |
Boom/Stick Excavator Option 3
| Boom/Stick Option (HEX) 3 | 7.60 m (24.93 ft) |
|---|---|
| Max bucket opening width | 110 in |
| Max.Dumping Height | 504 in |
| Breakout force-ISO | 298,996 lb |
| Ground pressure | 37 psi |
| Max. crowd force | 359,694 lb |
| Max. crowd force at ground level (ISO 6015) | 305,740 lb |
| Max. crowd length | 236 in |
| Maximum Reach at Ground Level | 598 in |
| Stick length | 181 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Batteries | 8 x 170 Ah / 12 V |
Swing System
| Hydraulic motors and drives | 4 Liebherr axial piston motors |
|---|---|
| Swing gear | 4 Liebherr planetary reduction gears |
| Swing ring teeth | Liebherr sealed triple roller swing ring internal teeth |
| Swing speed | 4 rpm |
