Liebherr

T282B

Off-Highway Truck

Operating Weight
1,305,000 lb
Max Speed
40.1 mph
Net Power
3,654.4 hp
All off-highway trucks

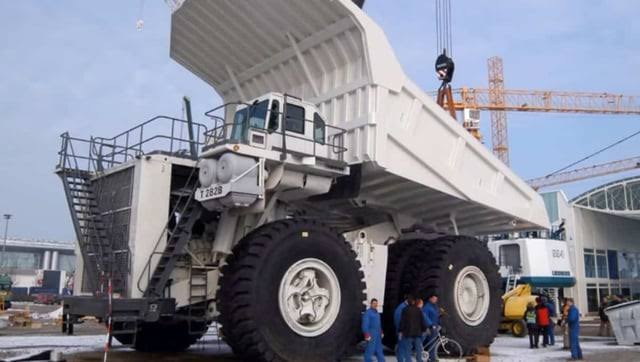

Liebherr T282B Off-Highway Truck
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity1,249.5 gal
Tire Size56/80 R63 or 59/80 R63
Engine Oil Capacity103.1 gal
Cooling System Fluid Capacity200.3 gal
Steering System Fluid Capacity39.7 gal
Diff and Final Drive Fluid Capacity74.0 gal
Brake/Hoist System Fluid Capacity398.9 gal

Engine

Engine specifications
Engine Model20V4000
Displacement5,492 in³
Power Measured @1,800 rpm
Net Power3,654.4 hp
Number of Cylinders20
MakeDDC/MTU

Weights

Weights specifications
Operating Weight1,305,000 lb
Empty Weight555,565 lb
Loaded Weight1,437,414 lb
Weight Distribution Front - loaded33.0 %
Weight Distribution Rear - loaded66.0 %
Weight Distribution Front - empty46.0 %
Weight Distribution Rear - empty54.0 %

Dimensions

Dimensions specifications
Ground Clearance55 in
Wheelbase258 in
Overall Length571 in
Overall Width354 in
Overall Height309 in
Dump Height587 in
Dump Ground Clearance66 in

Transmission

Transmission specifications
Max Speed40.1 mph

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank800,190.8 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Dump Angle45 °
Raise Time22.0 s
Lower Time12.0 s
Load Capacity - heaped277.29 yd³
