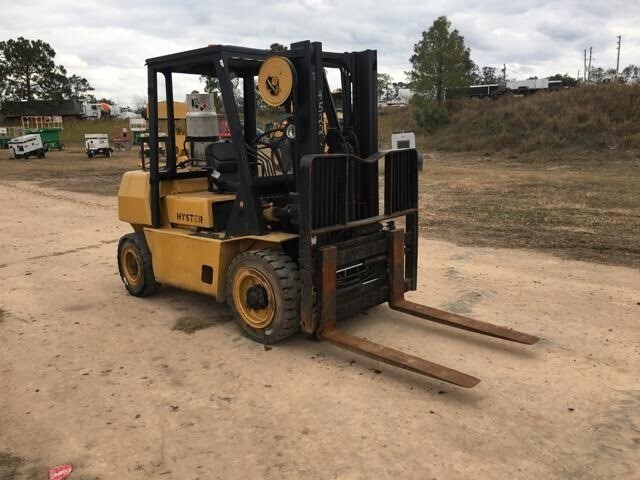

Lift King
Hyster
H110FT
Forklift
38 specifications
1 / 5
Image 1 of 5
Specifications
17 data points
Operating Specifications
| Operating Weight | 19,000 lb |
|---|---|
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | drive 14.00x24 12ply steer 14x17.5 12ply |
Engine
| Engine Model | 1004T-4 |
|---|---|
| Power | 86.0 hp |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 81 in |
| Overall Width | 84 in |
| Overall Height - mast lowered | 163 in |
| Length to Fork Face | 162 in |
| Height to Top of Overhead Guard | 101 in |
| Max Fork Height | 229 in |
Mast
| Load Capacity | 12,000 lb |
|---|---|
| Load Center | 24 in |
| Mast Tip Forward | 20 ° |
| Mast Tip Rear | 10 ° |
