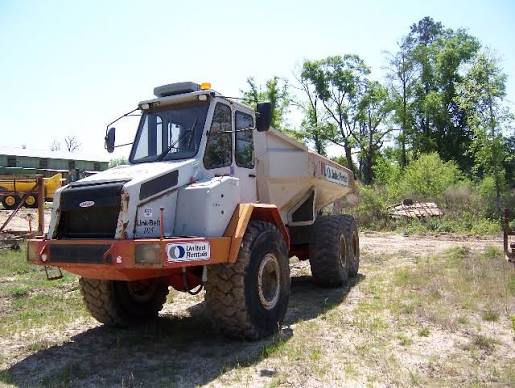

Link Belt
Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 85.9 gal |
|---|---|
| Tire Size | 23.5 R25 |
| Engine Oil Capacity | 9.0 gal |
| Cooling System Fluid Capacity | 9.8 gal |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 6.1 gal |
Engine
| Engine Model | 6CTA8.3C |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 255.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Aftercooled |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 750 lb-ft |
Weights
| Total Empty | 39,700 lb |
|---|---|
| Front Axle - empty | 19,042 lb |
| Total Loaded | 89,700 lb |
| Rear Axle - empty | 10,173 lb |
| Center Axle - empty | 10,484 lb |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Wheelbase | 221 in |
| Overall Length | 367 in |
| Overall Width | 106 in |
| Overall Height | 134 in |
| Dump Height | 245 in |
| Dump Ground Clearance | 36 in |
Transmission
| Max Speed | 40.3 mph |
|---|---|
| Transmission Type | Power Shift |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 4 |
Dump
| Rated Payload | 50,000 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 14.0 s |
| Lower Time | 16.0 s |
| Capacity - Heaped | 17.40 yd³ |
| Capacity - Struck | 14.00 yd³ |
