Link Belt

HSP-22

Rough Terrain Crane

Max Speed - Forward
22.0 mph
Gross Power
136.0 hp
All rough terrain cranes

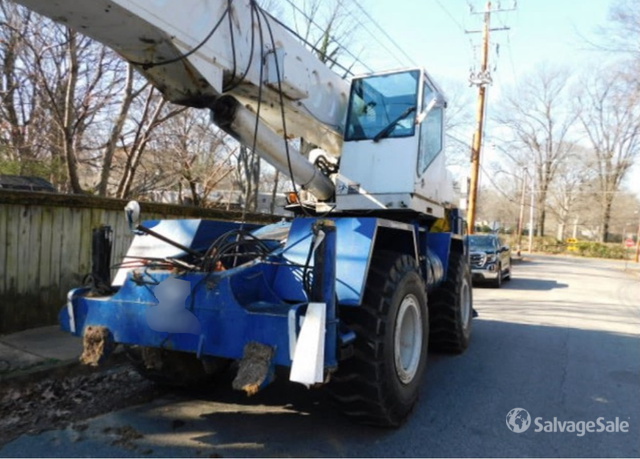

Link Belt HSP-22 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: salvagesale.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity68.0 gal
Tire Size17.5 x 25
Operating Voltage12 V
Hydraulic System Fluid Capacity101.0 gal
Alternator Supplied Amperage42 A

Engine

Engine specifications
Engine Model19450
Displacement212 in³
Power Measured @2,800 rpm
Gross Power136.0 hp
Number of Cylinders4
Torque Measured @1,800 rpm
Max Torque282 lb-ft
Engine MakeGeneral Motors
Bore4 in
Stroke5 in
Crankcase capacity3.5 gal

Dimensions

Dimensions specifications
Ground Clearance11 in
Wheelbase121 in
Transport Width96 in
Transport Height132 in
Transport Length456 in
Width w/ Outriggers Extended223 in
Upper Structure Tail Swing Radius128 in
Carrier/Base Length261 in

Transmission

Transmission specifications
Max Speed - Forward22.0 mph
Max Speed - Reverse8.1 mph
Transmission TypeAllison TT-2221-1 Powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib841 in
Min Height @ Max Raise Angle343 in
Number of Sections3
Swing Speed3 rpm
