Link Belt

L120

Wheel Loader

Operating Weight
20,507 lb
Bucket Capacity - heaped
2.00 yd³
Gross Power
110.0 hp
Net Power
106.0 hp
All wheel loaders

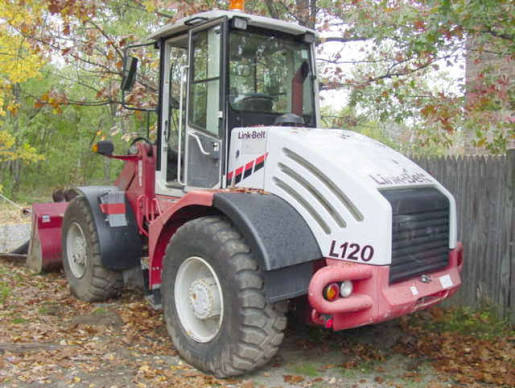

Link Belt L120 Wheel Loader
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,507 lb
Fuel Capacity34.4 gal
Tire Size17.5 R25
Hydraulic System Fluid Capacity31.8 gal
Static Tipping Weight14,559 lb
Operating Voltage24 V
Turning Radius209 in
Engine Oil Fluid Capacity2.7 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity2.7 gal
Rear Axle/Diff Fluid Capacity2.7 gal
Transmission Fluid Capacity4.5 gal

Engine

Engine specifications
Engine Model4BTA3.9
Displacement239 in³
Power Measured @2,200 rpm
Gross Power110.0 hp
Net Power106.0 hp
Number of Cylinders4
AspirationTurbocharged and Intercooled
Torque Measured @1,500 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity32.0 gal/min
Raise Time5.4 s
Lower Time3.8 s
Dump Time1.4 s
Relief Valve Setting4,060 psi
Pump TypeVariable Displacement

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab121 in
Wheelbase108 in
Width Over Tires89 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground258 in
Hinge Pin - Max Height145 in

Transmission

Transmission specifications
Max Speed - Forward22.1 mph
Max Speed - Reverse15.5 mph
Transmission TypePower Shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.00 yd³
Dump Clearance at Max Raise110 in
Breakout Force19,108 lb
