Link Belt

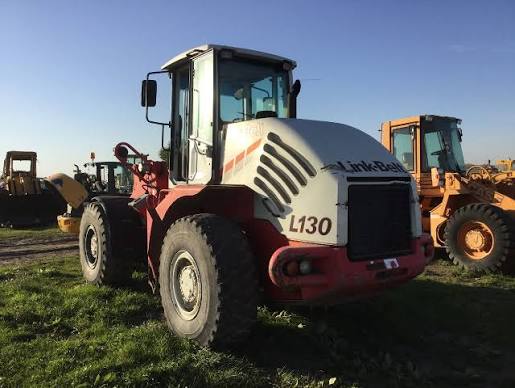

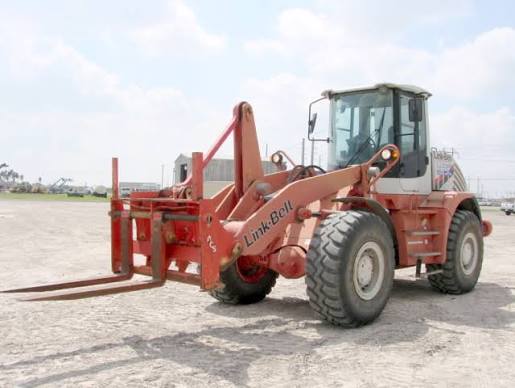

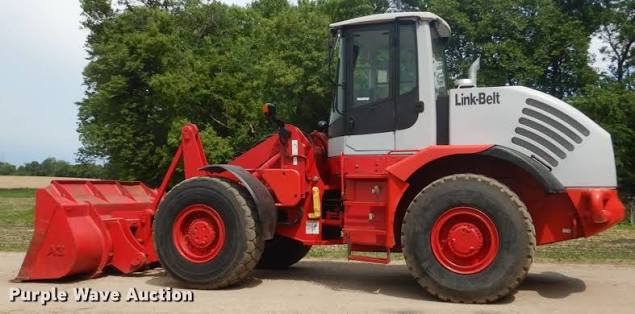

L130
- Operating Weight
- 30,305 lb
- Bucket Capacity - heaped
- 3.20 yd³
- Gross Power
- 173.0 hp
- Net Power
- 166.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 30,305 lb |
|---|---|
| Fuel Capacity | 52.9 gal |
| Tire Size | 20.5 R25 |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Static Tipping Weight | 23,283 lb |
| Operating Voltage | 24 V |
| Turning Radius | 239 in |
| Engine Oil Fluid Capacity | 4.8 gal |
| Rear Axle Oscillation | 25 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 4.0 gal |
| Rear Axle/Diff Fluid Capacity | 4.0 gal |
| Transmission Fluid Capacity | 4.8 gal |
Engine
| Engine Model | 6BTA5.9 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 173.0 hp |
| Net Power | 166.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 55.0 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 3.0 s |
| Dump Time | 2.2 s |
| Relief Valve Setting | 4,060 psi |
| Pump Type | Variable Displacement |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 131 in |
| Width Over Tires | 101 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 295 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 21.7 mph |
|---|---|
| Max Speed - Reverse | 14.9 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 113 in |
| Breakout Force | 27,876 lb |
