Link Belt
Grove
RT625
Rough Terrain Crane
38 specifications
1 / 5

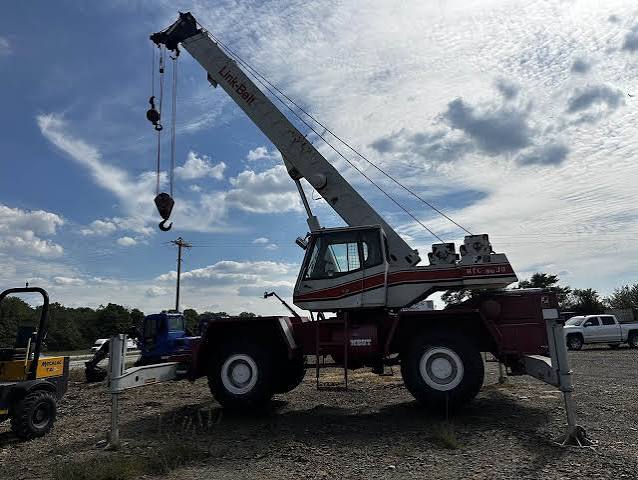

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 55,526 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| Tire Size | 20.5R25 |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 80.1 gal |
| Alternator Supplied Amperage | 150 A |
| Engine Oil Capacity | 4.6 gal |
Engine
| Engine Model | C6.6 |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 156.0 hp |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 504 lb-ft |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 12 in |
| Transport Width | 102 in |
| Transport Height | 133 in |
| Transport Length | 458 in |
| Width w/ Outriggers Extended | 234 in |
| Upper Structure Tail Swing Radius | 120 in |
| Carrier/Base Length | 272 in |
Transmission
| Max Speed - Forward | 25.5 mph |
|---|---|
| Max Speed - Reverse | 4.2 mph |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
| Transmission Type | powershift |
Boom
| Max Height @ Max Raise Angle - no jib | 1,205 in |
|---|---|
| Min Height @ Max Raise Angle | 444 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 4 |
| Swing Speed | 3 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,020 in |
