Liugong
BOMAG
BW 191 ADO-5

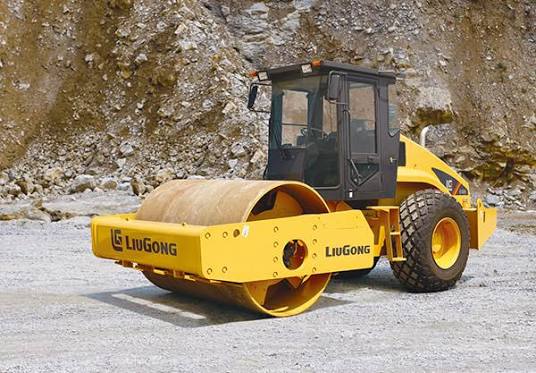

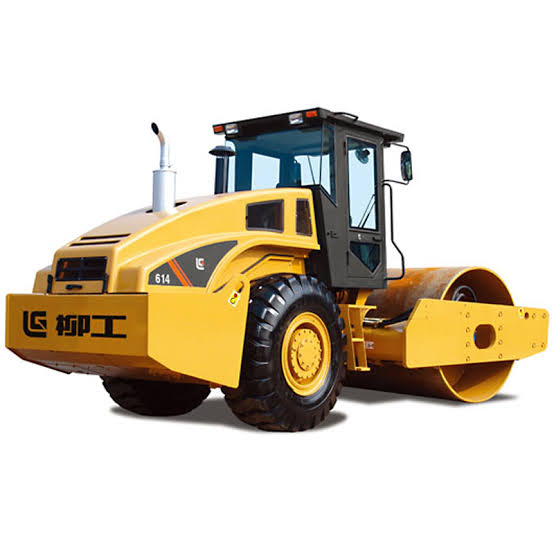

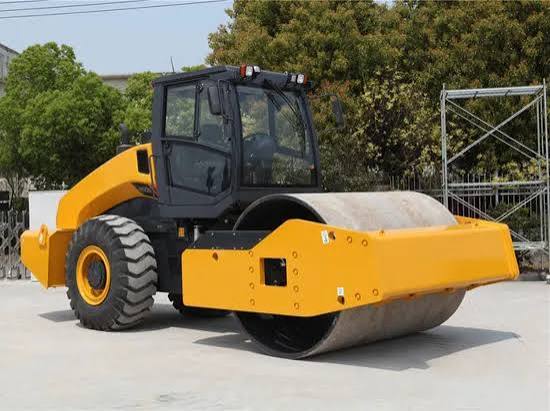

Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 31,967 lb |
|---|---|
| Max Speed | 6.5 mph |
| Fuel Capacity | 76.7 gal |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Engine Oil Capacity | 4.5 gal |
Engine
| Engine Model | 6BTA5.9-C145 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 144.9 hp |
| Aspiration | Turbocharged |
Dimensions
| Height - Top of Cab | 121 in |
|---|---|
| Wheelbase | 10 in |
| Overall Length | 20 in |
| Overall Width | 88 in |
| Drum Diameter - Front | 60 in |
Tires & Wheels
| Tires | 23.1-26-14PR |
|---|
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 59 in |
| Vibration Frequency 1 | 28 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 35,969 lb |
| Vibration Frequency 2 | 32 vpm |
| Centrifugal Force - Low | 67,443 lb |
| Nominal Amplitude - Low | 0 in |
