Liugong

906

Excavator

Operating Weight
16,314 lb
Max Digging Depth
165 in
Net Power
60.4 hp
All excavators

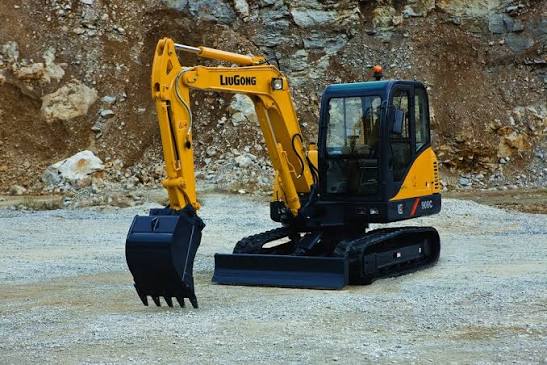

Liugong 906 Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,314 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity45.8 gal/min
Hydraulic System Fluid Capacity15.9 gal
Engine Oil Capacity1.9 gal
Cooling System Fluid Capacity3.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.4 gal

Engine

Engine specifications
Engine ModelB3.3
Displacement201 in³
Power Measured @2,200 rpm
Net Power60.4 hp
AspirationTurbocharged
Torque Measured @1,600 rpm
Max Torque158 lb-ft

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab103 in
Tail Swing Radius70 in
Width to Outside of Tracks85 in
Removal Counterweight Clearance31 in

Undercarriage

Undercarriage specifications
Track Gauge67 in
Number of Track Rollers per Side5
Max Travel Speed2.7 mph
Shoe Size18 in
Number of Shoes per Side38
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth165 in
Max Reach Along Ground246 in
Max Loading Height200 in
Max Vertical Wall Digging Depth127 in
Max Cutting Height282 in
Shipping Length of Unit243 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
