Manitou

M26.4

Forklift

All forklifts

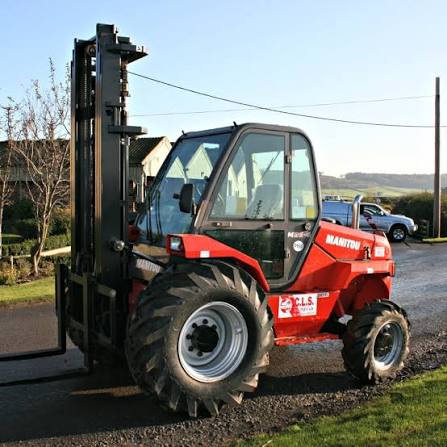

Manitou M26.4 Forklift
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,963 lb
Max Speed13.5 mph
Number of Front Wheels2
Number of Rear Wheels2
Tire TypeFRWD- 400/70-20 150B T37 STAB TLBackward-10.5/80-18 10PR TG42 TL

Engine

Engine specifications
Engine ModelEuro 2 1104C 44
Displacement269 in³
Power Measured @1,400 rpm
Power75.0 hp
Fuel TypeDirect
Torque235 lb-ft
InjectionWater

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase79 in
Overall Width76 in
Turning Radius169 in
Overall Height - mast lowered108 in
Length to Fork Face48 in
Height to Top of Overhead Guard101 in
Max Fork Height146 in

Mast

Mast specifications
Load Capacity5,732 lb
Load Center20 in
Mast Tip Forward6 °
Mast Tip Rear12 °
Max Fork Spread58 in
Number of Mast Sections1
