Roadtec Astec
RP-175
Asphalt Paver
21 specifications

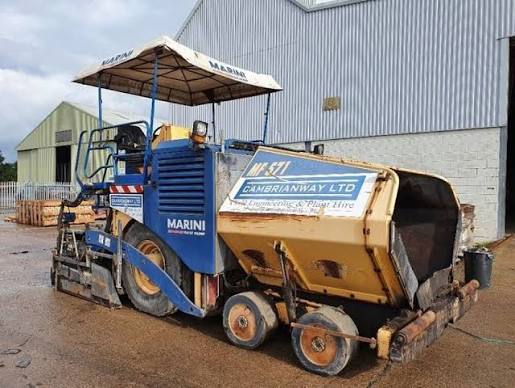

Marini
MF571
- Operating Weight w/ Screed
- 33,069 lb
- Paving Width - max
- 270 in
- Gross Power
- 124.8 hp
- Length w/ Screed
- 221 in
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight w/ Screed | 33,069 lb |
|---|---|
| Fuel Capacity | 50.2 gal |
| Hydraulic System Fluid Capacity | 42.3 gal |
Engine
| Engine Model | BF4M1013 |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 124.8 hp |
| Number of Cylinders | 4 |
Dimensions
| Transport Width | 101 in |
|---|---|
| Transport Height | 143 in |
| Tire Size | 17.5R25 |
| Length w/ Screed | 221 in |
| Width w/ Hopper Open | 133 in |
Hopper/Paver
| Paving Width - max | 270 in |
|---|---|
| Paving Speed - max | 1.6 mph |
| Hopper Capacity | 8 lb |
| Travel Speed - max | 10.0 mph |
| Auger Diameter | 14 in |
| Paving Thickness - max | 12 in |
Comparable machines
Other asphalt pavers in a similar weight class.
