BOMAG
CR 662 RM
Asphalt Paver
37 specifications

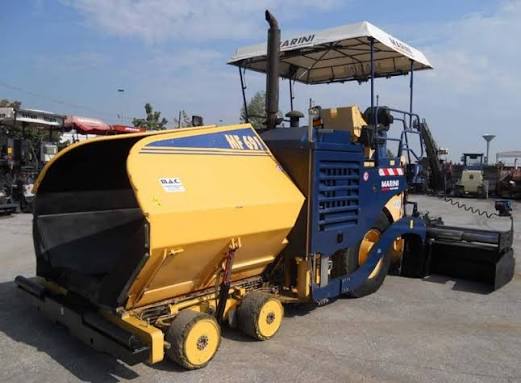

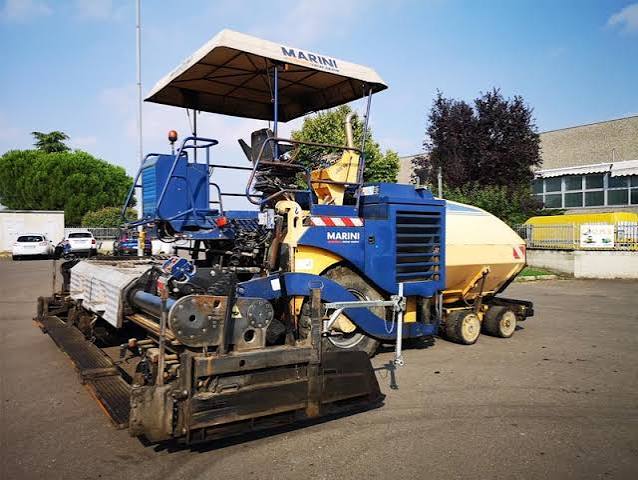

Marini
MF691
- Operating Weight w/ Screed
- 39,683 lb
- Paving Width - max
- 322 in
- Gross Power
- 187.8 hp
- Length w/ Screed
- 265 in
1 / 5
Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight w/ Screed | 39,683 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic System Fluid Capacity | 60.8 gal |
Engine
| Engine Model | BF6M 2012C-EMR |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 187.8 hp |
| Number of Cylinders | 6 |
Dimensions
| Transport Width | 101 in |
|---|---|
| Transport Height | 148 in |
| Tire Size | 17.5R25 |
| Length w/ Screed | 265 in |
| Width w/ Hopper Open | 134 in |
Hopper/Paver
| Paving Width - max | 322 in |
|---|---|
| Paving Speed - max | 1.6 mph |
| Hopper Capacity | 11 lb |
| Travel Speed - max | 9.4 mph |
| Auger Diameter | 16 in |
| Paving Thickness - max | 12 in |
