Massey Ferguson

6615 DYNA 4

Tractor

Operating Weight
11,905 lb
Displacement
299 in³
Gross Power
145.0 hp
All tractors

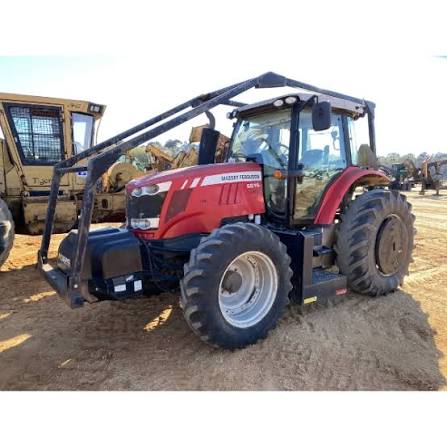

Massey Ferguson 6615 DYNA 4 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,905 lb
3 Point Hitch Lift Capacity @ 24 inches15,653 lb
Tire Size Front - 2wd / 4wd14.9 R 28

Engine

Engine specifications
Displacement299 in³
Gross Power145.0 hp
Number of Cylinders4
AspirationTurbo Intercooled
Max Torque481 lb-ft
PTO Power125.0 hp
Engine TypeAGCO POWER with 2nd Generation SCR

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.4 gal/min
Number of Remote Control Valves4
Maximum operating pressure2,901 psi

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase106 in
Overall Length185 in
Height - Top of ROPS/FOPS120 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears16
Transmission TypeSemi-powershift
Number of Reverse Gears16

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4 R 38
