Massey Ferguson

8220

Tractor

Operating Weight
14,760 lb
Displacement
366 in³
Power Measured @
2,200 rpm
Gross Power
152.9 hp
All tractors

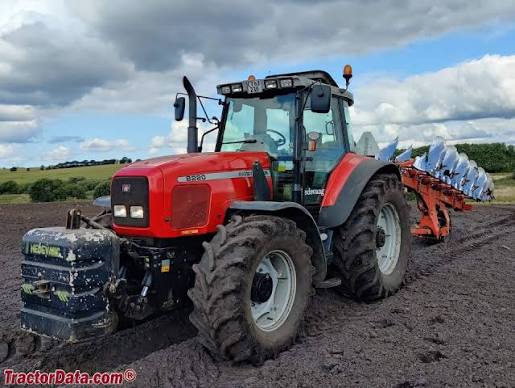

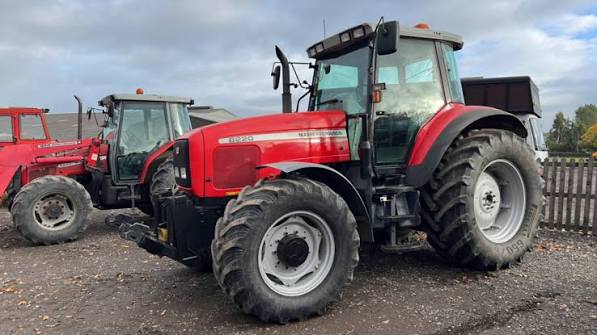

Massey Ferguson 8220 Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,760 lb
Fuel Capacity103.1 gal
3 Point Hitch Lift Capacity @ 24 inches13,999 lb
Tire Size Front - 2wd / 4wd18.4R-38
Hydraulic System Fluid Capacity34.9 gal

Engine

Engine specifications
Displacement366 in³
Power Measured @2,200 rpm
Gross Power152.9 hp
Number of Cylinders6
AspirationTurbocharged
Engine MakePerkins
PTO Power135.5 hp
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity27.8 gal/min

Dimensions

Dimensions specifications
Wheelbase108 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears32
Transmission TypeManual / Partial Power-Shift
Number of Reverse Gears32

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size11.00-16

Production

Production specifications
Series8200 Series
Years Manufactured1,999 – 2,003
