Massey Ferguson

MF 5713SL

Tractor

Operating Weight
10,582 lb
Power Measured @
2,200 rpm
Gross Power
174.4 hp
All tractors

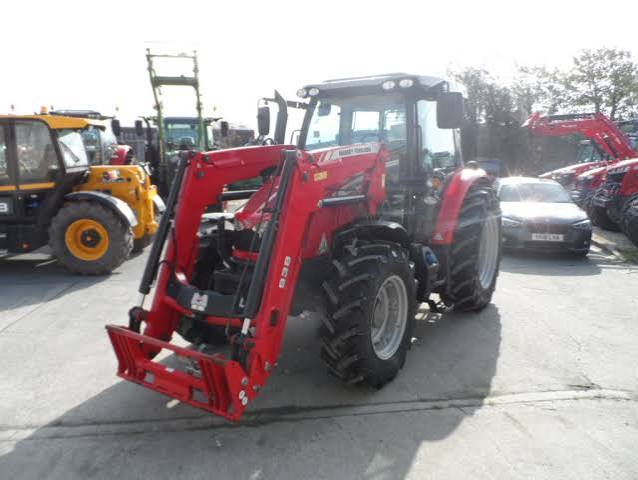

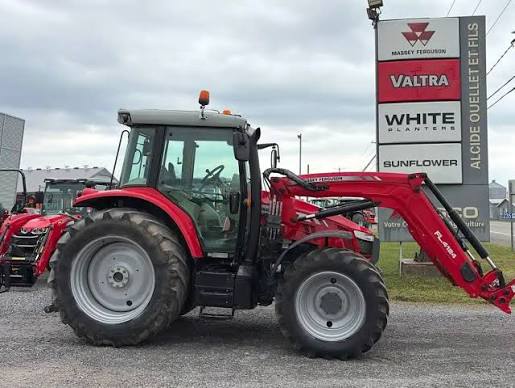

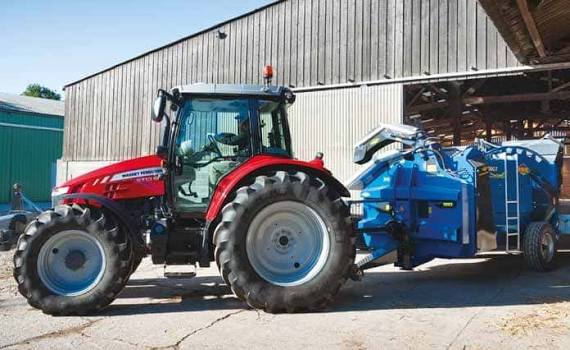

Massey Ferguson MF 5713SL Tractor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,582 lb
Fuel Capacity47.6 gal
3 Point Hitch Lift Capacity @ 24 inches8,576 lb
Alternator Supplied Amperage120 A
Operating Voltage12 V
DEF tank capacity6.7 gal

Engine

Engine specifications
Engine ModelAGCO Power
Power Measured @2,200 rpm
Gross Power174.4 hp
Torque Measured @1,600 rpm
Max Torque402 lb-ft
PTO Power139.5 hp
Rated Engine Speed2,200 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.1 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab111 in
Wheelbase101 in
Width Outside Frame101 in

Transmission

Transmission specifications
Transmission TypePower Shuttle Transmission
