Mauldin

MG622

Motor Grader

Max Power
133.0 hp
All motor graders

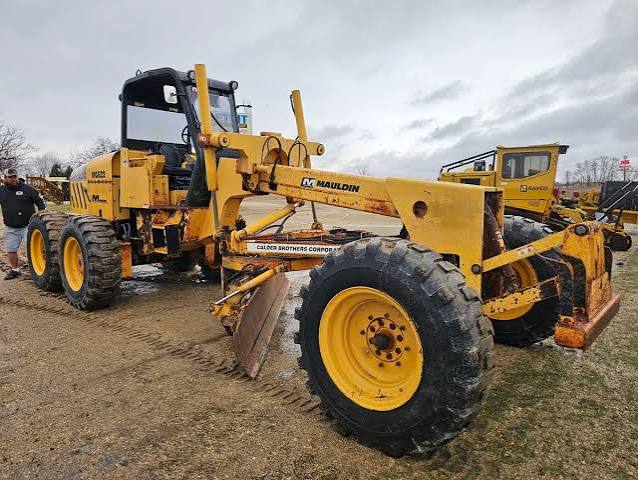

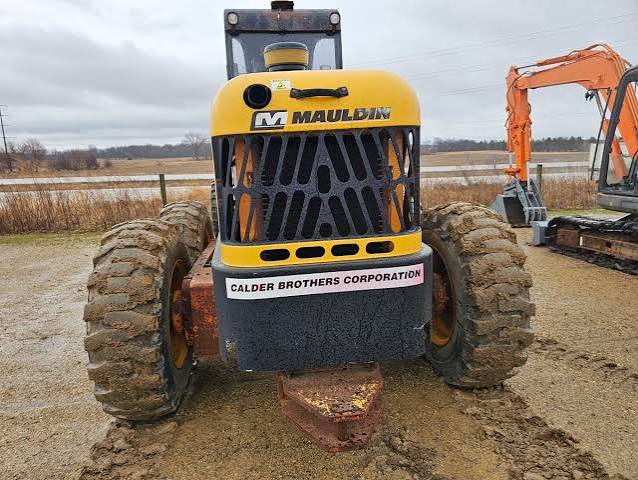

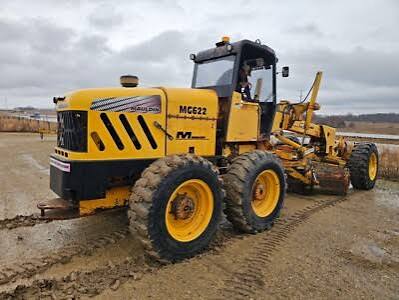

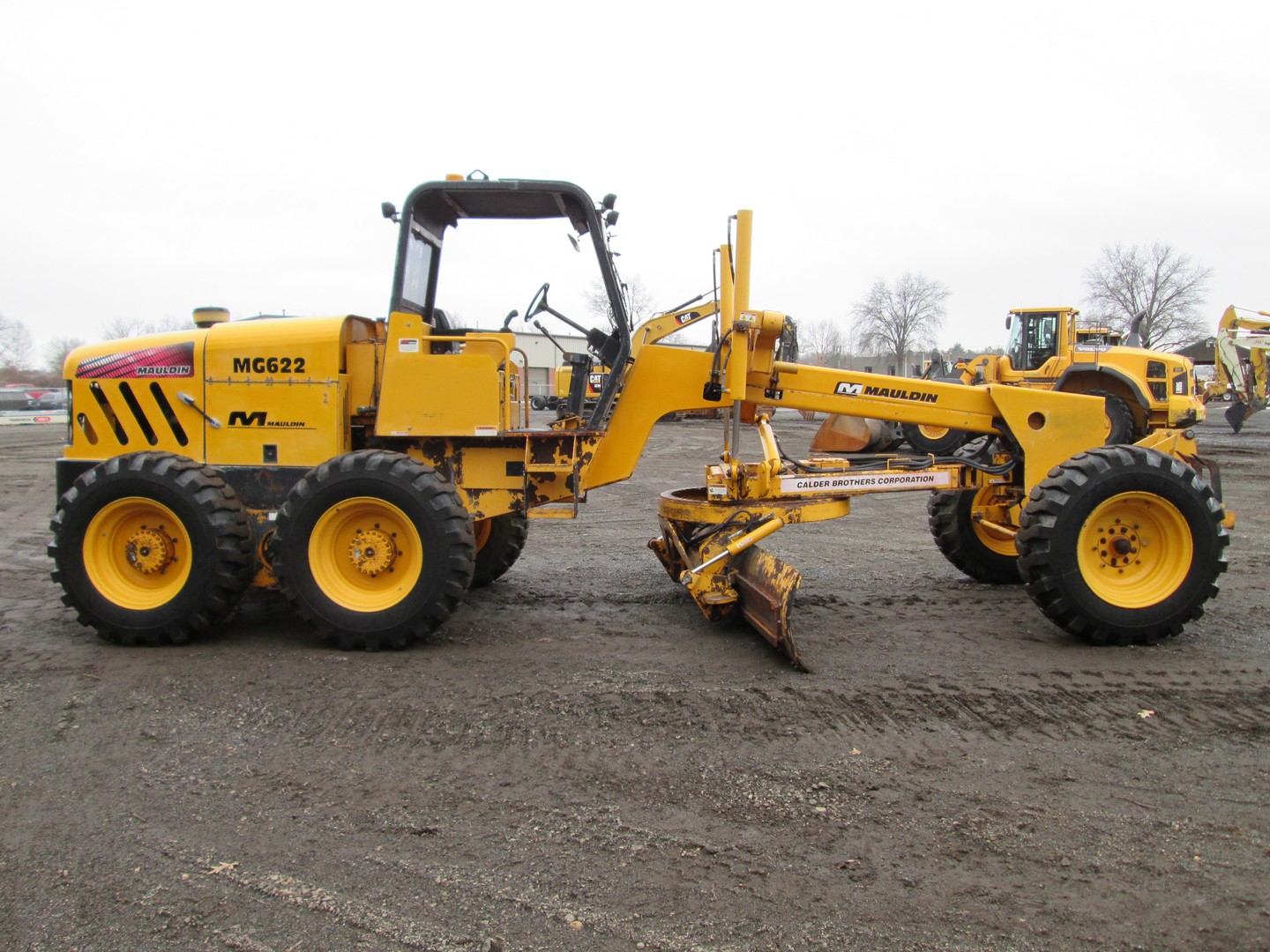

Mauldin MG622 Motor Grader
1 / 5
Image 1 of 5
Image: proxibid.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total22,840 lb
Tire Size15.5-25
Fuel Capacity40.0 gal
Std Operation Weight - Front Axle6,695 lb
Std Operation Weight - Rear Axle16,145 lb
Hydraulic System Fluid Capacity25.0 gal
Operating Voltage12 V

Engine

Engine specifications
Displacement247 in³
AspirationTurbocharged and aftercooled
Max Power133.0 hp
Net Torque Gears 1-2363 lb-ft

Dimensions

Dimensions specifications
Wheelbase209 in
Overall Length329 in
Width Over Tires101 in
Height to Top of Isomount Cab117 in
Blade Base94 in
Tandem Axle Wheelbase57 in

Transmission

Transmission specifications
Max Speed - Forward22.0 mph
Max Speed - Reverse22.0 mph
Number of Gears - Forward2
Number of Gears - Reverse2
Transmission Typehydrostatic

Moldboard

Moldboard specifications
Moldboard Height22 in
Moldboard Width144 in
Side Shift Left31 in
Side Shift Right27 in
Max Depth of Cut24 in

Circle

Circle specifications
Max Lift Above Ground14 in
Max Reach Outside Tires - Left77 in
Max Reach Outside Tires - Right72 in
Diameter54 in

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total30 °

Steering System

Steering System specifications
Turning Radius246 in
Articulation Angle24 °
