Mccormick
Fendt
817
Tractor
23 specifications

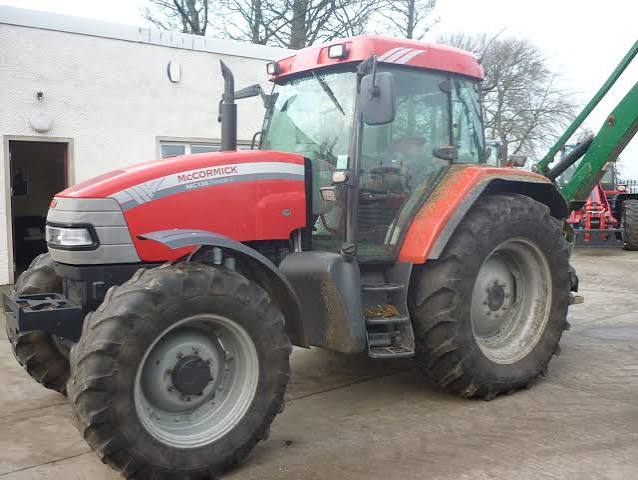

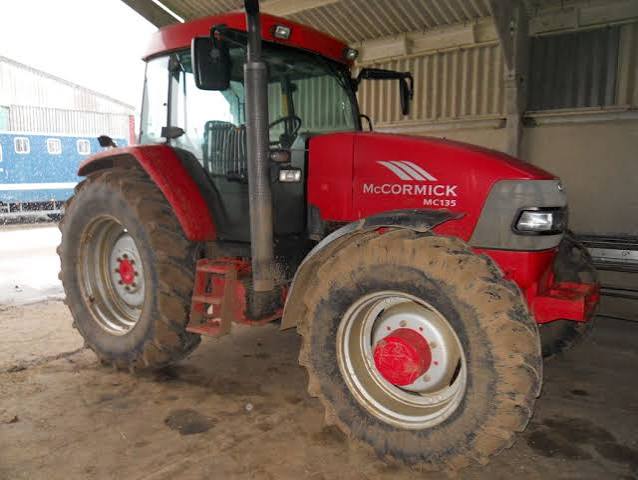

Mccormick
MC135 Power6
- Operating Weight
- 12,853 lb
- Displacement
- 366 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 132.0 hp
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 12,853 lb |
|---|---|
| Fuel Capacity | 70.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 12,943 lb |
| 3 Point Hitch Type | Cat IIIN |
| Turning Radius | 190 in |
| Alternator Supplied Amperage | 95 A |
Engine
| Displacement | 366 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 132.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged wastegate intercooler |
| Torque Rise | 29.0 % |
Hydraulic System
| Pump Flow Capacity | 28.8 gal/min |
|---|
Dimensions
| Height - Top of Cab | 111 in |
|---|---|
| Wheelbase | 104 in |
| Overall Length | 16 in |
| Tire Size | front 14.9/28 rear 18.4/38 |
| Width Outside Frame | 91 in |
Transmission
| Max Speed | 23.4 mph |
|---|---|
| Number of Forward Gears | 16 |
| Number of Reverse Gears | 12 |
