Mccormick

MC95

Tractor

Operating Weight
11,905 lb
Displacement
269 in³
Power Measured @
2,200 rpm
Gross Power
89.2 hp
All tractors

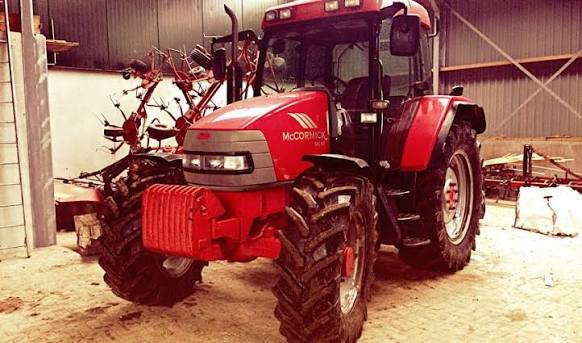

Mccormick MC95 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,905 lb
Fuel Capacity51.8 gal
3 Point Hitch Lift Capacity @ 24 inches12,943 lb
3 Point Hitch TypeCat IIIN
Turning Radius172 in
Alternator Supplied Amperage95 A

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Gross Power89.2 hp
Number of Cylinders4
Aspirationturbocharged wastegate intercooler
Torque Rise33.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.8 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Wheelbase96 in
Overall Length14 in
Tire Sizefront 13.6R28 rear 16.9R38
Width Outside Frame85 in

Transmission

Transmission specifications
Number of Forward Gears16
Number of Reverse Gears12
