Mccormick

MTX120

Tractor

Operating Weight
13,007 lb
Displacement
412 in³
Power Measured @
2,200 rpm
Gross Power
114.0 hp
All tractors

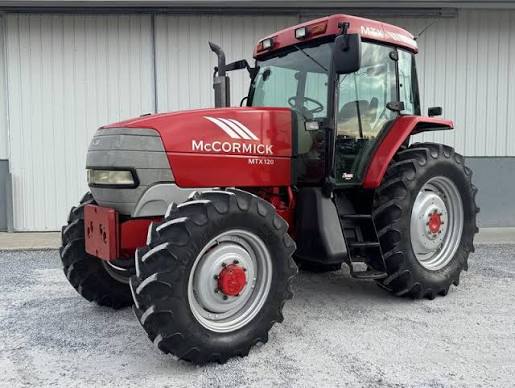

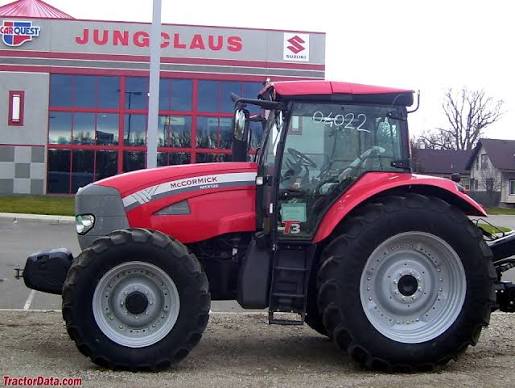

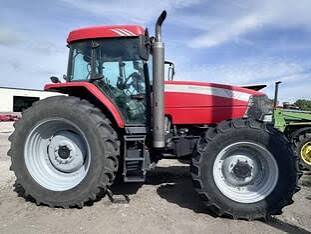

Mccormick MTX120 Tractor
1 / 5
Image 1 of 5
Image: tractors.fandom.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,007 lb
Fuel Capacity70.1 gal
3 Point Hitch Lift Capacity @ 24 inches12,943 lb
3 Point Hitch TypeCat IIIN
Turning Radius183 in
Alternator Supplied Amperage120 A

Engine

Engine specifications
Displacement412 in³
Power Measured @2,200 rpm
Gross Power114.0 hp
Number of Cylinders6
Aspirationturbocharged intercooler
Torque Rise41.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.8 gal/min

Dimensions

Dimensions specifications
Wheelbase108 in
Overall Length17 in
Tire Sizefront 14.9/28 rear 18.4/38
Width Outside Frame91 in

Transmission

Transmission specifications
Number of Forward Gears16
Number of Reverse Gears12
