Mccormick

MTX150

Tractor

Operating Weight
13,581 lb
Displacement
412 in³
Power Measured @
2,200 rpm
Gross Power
150.2 hp
All tractors

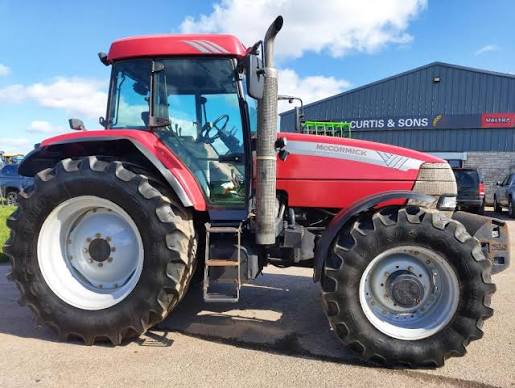

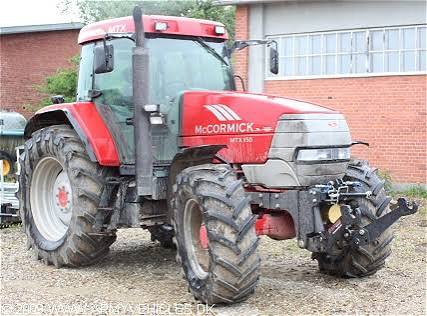

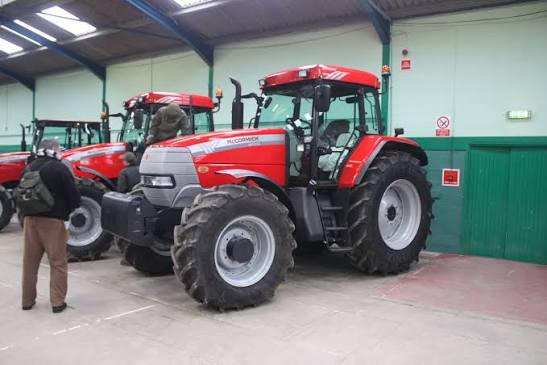

Mccormick MTX150 Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,581 lb
Fuel Capacity70.1 gal
3 Point Hitch Lift Capacity @ 24 inches14,555 lb
3 Point Hitch TypeCat IIIN
Turning Radius183 in
Alternator Supplied Amperage120 A

Engine

Engine specifications
Displacement412 in³
Power Measured @2,200 rpm
Gross Power150.2 hp
Number of Cylinders6
Aspirationturbocharged intercooler
Torque Rise20.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.8 gal/min

Dimensions

Dimensions specifications
Wheelbase108 in
Overall Length17 in
Tire Sizefront 16.9R28 rear 20.8R38
Width Outside Frame91 in

Transmission

Transmission specifications
Number of Forward Gears16
Number of Reverse Gears12
