Mccormick
XTX200
- Operating Weight
- 17,736 lb
- Displacement
- 409 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 179.7 hp
1 / 5

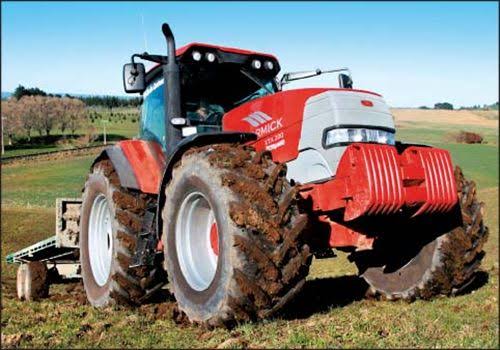

Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 17,736 lb |
|---|---|
| Fuel Capacity | 91.7 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 24,141 lb |
| 3 Point Hitch Type | Cat III |
| Turning Radius | 214 in |
| Alternator Supplied Amperage | 120 A |
Engine
| Displacement | 409 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 179.7 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged intercooler |
| Torque Rise | 38.0 % |
Hydraulic System
| Pump Flow Capacity | 34.1 gal/min |
|---|
Dimensions
| Height - Top of Cab | 119 in |
|---|---|
| Wheelbase | 114 in |
| Overall Length | 18 in |
| Tire Size | front 540/65R30 rear 650/65R42 |
| Width Outside Frame | 91 in |
Transmission
| Number of Forward Gears | 32 |
|---|---|
| Transmission Type | XtraSpeed |
| Number of Reverse Gears | 24 |
