Mecalac
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

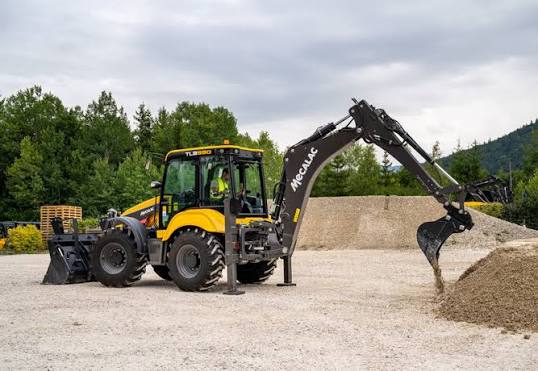

Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 18,144 lb |
|---|---|
| Fuel Capacity | 37.0 gal |
| Hydraulic System Fluid Capacity | 24.4 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Operating Voltage | 12 V |
| Rear Axle Fluid Capacity | 4.1 gal |
| Front Axle Fluid Capacity | 2.6 gal |
Engine
| Engine Model | 1204Eâ??E44TA |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 93.9 hp |
| Net Power | 88.2 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 295 lb-ft |
Hydraulic System
| Pump Flow Capacity | 21.2 gal/min |
|---|---|
| Relief Valve Pressure | 3,632 psi |
Dimensions
| Dump angle | 45 ° |
|---|---|
| Hinge pin height, maximum height | 142 in |
| Reach @ ground level | 57,126 in |
| Loading height (EVW) | 133 in |
Transmission
| Number of Forward Gears | 4 |
|---|---|
| Number of Reverse Gears | 3 |
General Specifications
| Operating Weight lbs (kg) | 18,636 (8,453) — Starting 2023 Model Year |
|---|---|
| Max Digging Depth ft. (m) | 18.6 (5.7) — Starting 2023 Model Year |
| Backhoe Loading Height ft. (m) | 13.3 (4.1) — Starting 2023 Model Year |
| Travel Speed 4th Gear Fwd MPH (kmh) | 25 (40) — Starting 2023 Model Year |
| Loader SAE HP (kw) | 110 (82) — Starting 2023 Model Year |
| Loader Lift Capacity lbs. (kg) | 8,744 (3,966) — Starting 2023 Model Year |
| Loader Breakout Force lbs. (kg) | 12454 (5,649) — Starting 2023 Model Year |
Backhoe
| Dig Depth | 173 in |
|---|---|
| Reach From Swivel | 226 in |
| Load Height | 143 in |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|
