Michigan

475CT

Wheel Loader

Operating Weight
174,573 lb
Bucket Capacity - heaped
12.10 yd³
Gross Power
725.5 hp
Net Power
639.7 hp
All wheel loaders

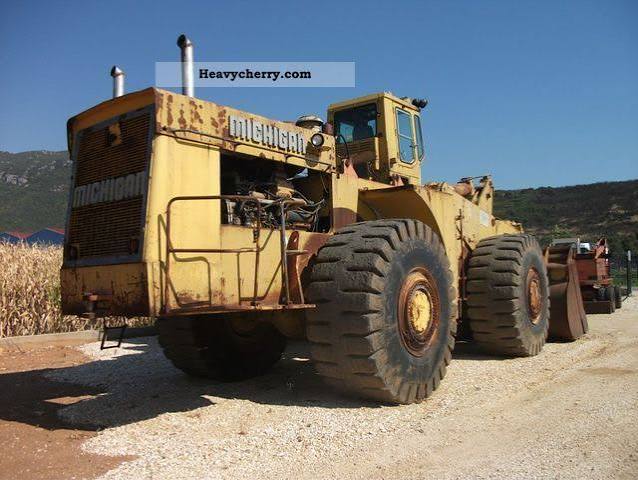

Michigan 475CT Wheel Loader
1 / 4
Image 1 of 4
Image: volvoce.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight174,573 lb
Fuel Capacity273.0 gal
Tire Size41.25/70-39 (34PR) L-5
Hydraulic System Fluid Capacity248.1 gal
Static Tipping Weight106,801 lb
Operating Voltage24 V
Turning Radius409 in
Engine Oil Fluid Capacity27.0 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage100 A
Front Axle/Diff Fluid Capacity29.1 gal
Rear Axle/Diff Fluid Capacity29.1 gal
Cooling System Fluid Capacity74.0 gal
Transmission Fluid Capacity55.1 gal

Engine

Engine specifications
Engine ModelVTA-28C
Displacement1,709 in³
Power Measured @2,000 rpm
Gross Power725.5 hp
Net Power639.7 hp
Number of Cylinders12
Aspirationturbocharged & intercooled
Torque Measured @1,300 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity276.1 gal/min
Raise Time10.0 s
Lower Time5.5 s
Dump Time3.7 s
Relief Valve Setting2,700 psi
Pump Typethree gear type

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab193 in
Wheelbase182 in
Width Over Tires163 in
Reach at Max Lift and Dump70 in
Length with Bucket on Ground498 in
Hinge Pin - Max Height247 in

Transmission

Transmission specifications
Max Speed - Forward15.8 mph
Max Speed - Reverse11.2 mph
Transmission TypeClark turbo transmission
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped12.10 yd³
Bucket Capacity - struck9.90 yd³
Dump Clearance at Max Raise190 in
Breakout Force149,003 lb
Bucket Width176 in
