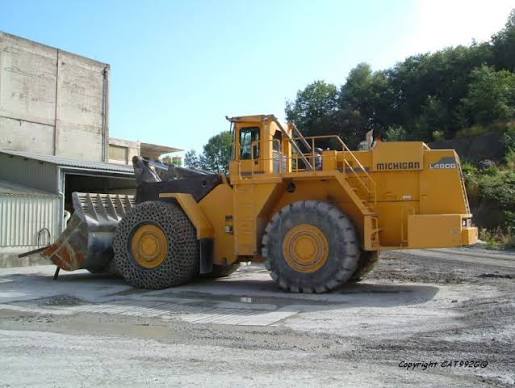

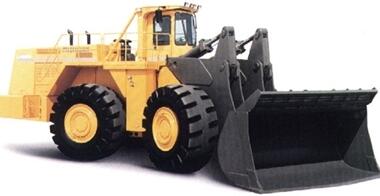

Michigan
L480B
- Operating Weight
- 179,180 lb
- Bucket Capacity - heaped
- 12.60 yd³
- Gross Power
- 725.0 hp
- Net Power
- 620.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 179,180 lb |
|---|---|
| Fuel Capacity | 376.0 gal |
| Tire Size | 41.25/70-39 (34PR) L-5 |
| Hydraulic System Fluid Capacity | 248.1 gal |
| Static Tipping Weight | 108,220 lb |
| Operating Voltage | 24 V |
| Turning Radius | 409 in |
| Engine Oil Fluid Capacity | 27.0 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 30.6 gal |
| Rear Axle/Diff Fluid Capacity | 30.6 gal |
| Cooling System Fluid Capacity | 78.0 gal |
| Transmission Fluid Capacity | 56.1 gal |
Engine
| Engine Model | VTA-28C |
|---|---|
| Displacement | 1,710 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 725.0 hp |
| Net Power | 620.0 hp |
| Number of Cylinders | 12 |
| Aspiration | turbo + aftercooled |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 253.0 gal/min |
|---|---|
| Raise Time | 11.4 s |
| Lower Time | 5.8 s |
| Dump Time | 4.0 s |
| Relief Valve Setting | 2,825 psi |
| Pump Type | three gear type |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Height - Top of Cab | 193 in |
| Wheelbase | 182 in |
| Width Over Tires | 163 in |
| Reach at Max Lift and Dump | 73 in |
| Length with Bucket on Ground | 510 in |
| Hinge Pin - Max Height | 247 in |
Transmission
| Max Speed - Forward | 19.9 mph |
|---|---|
| Max Speed - Reverse | 19.9 mph |
| Transmission Type | Clark 8422 H-206 countershaft type powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 12.60 yd³ |
|---|---|
| Bucket Capacity - struck | 10.59 yd³ |
| Dump Clearance at Max Raise | 186 in |
| Breakout Force | 142,000 lb |
| Bucket Width | 173 in |
