Michigan

L50B

Wheel Loader

Operating Weight
17,860 lb
Bucket Capacity - heaped
2.00 yd³
Gross Power
96.0 hp
Net Power
91.0 hp
All wheel loaders

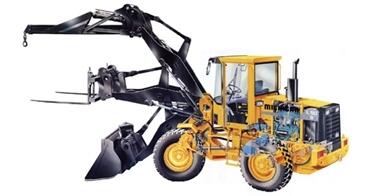

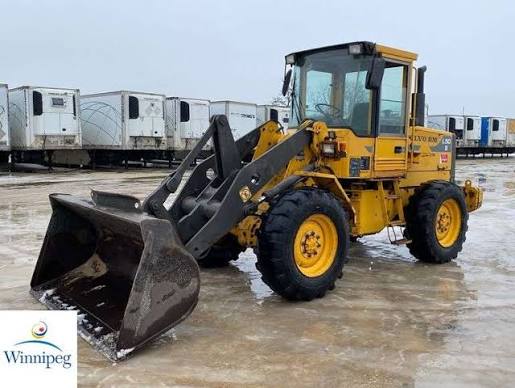

Michigan L50B Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,860 lb
Fuel Capacity45.0 gal
Tire Size15.5R25
Hydraulic System Fluid Capacity28.1 gal
Operating Voltage24 V
Turning Radius214 in
Rear Axle Oscillation12 °
Alternator Supplied Amperage60 A
Cooling System Fluid Capacity5.9 gal
Transmission Fluid Capacity1.9 gal
Engine Oil Capacity3.0 gal
Static Tipping Load - Bucket10,803 lb
Front Diff Fluid Capacity6.4 gal
Rear Diff Fluid Capacity6.4 gal
Static Tipping Load - Forks14,595 lb

Engine

Engine specifications
Engine ModelVME TD 40GA
Displacement244 in³
Power Measured @2,200 rpm
Gross Power96.0 hp
Net Power91.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm
Max Torque273 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.4 gal/min
Raise Time4.4 s
Lower Time3.3 s
Dump Time1.1 s
Relief Valve Setting3,771 psi
Pump Typeload sensing axial flow piston

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab119 in
Wheelbase109 in
Width Over Tires85 in
Hinge Pin - Max Height146 in
Dump Clearance at Max Lift109 in
Length w/ Bucket on Ground252 in
Reach at Max Height and Dump42 in
Max Lift Height141 in
Fork Tine Length49 in
Length with out Forks on Ground254 in
Height at Hook Max Reach57 in
Hook Height at Max Lift - standard231 in

Transmission

Transmission specifications
Max Speed - Forward22.6 mph
Max Speed - Reverse22.6 mph
Transmission TypeVME power shift

Bucket

Bucket specifications
Bucket Capacity - heaped2.00 yd³
Bucket Capacity - struck1.50 yd³
Breakout Force13,623 lb
