Michigan

L90

Wheel Loader

Operating Weight
28,540 lb
Bucket Capacity - heaped
3.30 yd³
Gross Power
156.0 hp
Net Power
145.0 hp
All wheel loaders

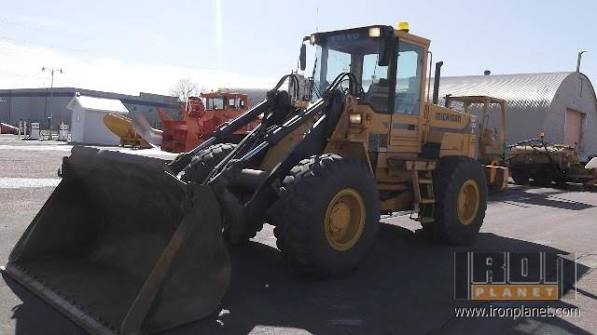

Michigan L90 Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,540 lb
Fuel Capacity48.9 gal
Tire Size20.5R25
Hydraulic System Fluid Capacity37.0 gal
Operating Voltage24 V
Turning Radius230 in
Rear Axle Oscillation30 °
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity14.1 gal
Transmission Fluid Capacity8.8 gal
Engine Oil Capacity4.5 gal
Static Tipping Load - Bucket21,760 lb
Front Diff Fluid Capacity8.6 gal
Rear Diff Fluid Capacity7.8 gal
Static Tipping Load - Forks11,023 lb
Static Tipping Load - Material Handler4,850 lb

Engine

Engine specifications
Engine ModelTD61G
Displacement334 in³
Power Measured @2,200 rpm
Gross Power156.0 hp
Net Power145.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
Max Torque405 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity53.4 gal/min
Raise Time6.6 s
Lower Time2.8 s
Dump Time1.5 s
Relief Valve Setting2,975 psi
Pump Typevane type

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab120 in
Wheelbase119 in
Width Over Tires98 in
Hinge Pin - Max Height150 in
Reach at Max Height and Dump42 in
Length w/ Bucket on Ground283 in
Dump Clearance at Max Lift111 in
Max Lift Height145 in
Fork Tine Length49 in
Length with out Forks on Ground283 in
Height at Hook Max Reach62 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Max Speed - Reverse18.0 mph
Transmission TypeVolvo BM HT131
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.30 yd³
Bucket Capacity - struck2.80 yd³
Breakout Force26,760 lb
