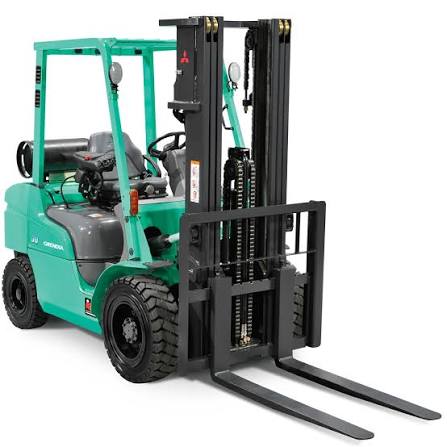

Mitsubishi
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 7,981 lb |
|---|---|
| Max Speed | 11.5 mph |
| Tire Type | Pneumatic |
| Tire Size | 7.0 x 12 - 12PR |
Engine
| Engine Model | GK21E |
|---|---|
| Displacement | 128 in³ |
| Power Measured @ | 2,700 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 2,200 rpm |
| Power | 53.0 hp |
| Torque | 110 lb-ft |
Dimensions
| Ground Clearance | 5 in |
|---|---|
| Wheelbase | 64 in |
| Overall Width | 46 in |
| Turning Radius | 89 in |
| Overall Height - mast lowered | 85 in |
| Length to Fork Face | 101 in |
| Height to Top of Overhead Guard | 84 in |
| Max Fork Height | 132 in |
Mast
| Load Capacity | 5,512 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 0.0 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 1.1 mph |
