Mitsubishi
Komatsu

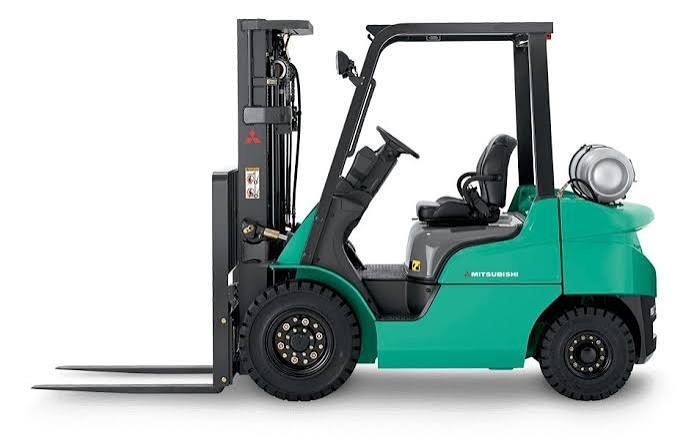

FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 9,502 lb |
|---|---|
| Max Speed | 10.3 mph |
| Tire Type | Cushion |
Engine
| Engine Model | GK25E |
|---|---|
| Displacement | 153 in³ |
| Power Measured @ | 2,700 rpm |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
| Power | 63.0 hp |
| Fuel Type | LP gas |
| Torque | 139 lb-ft |
Dimensions
| Ground Clearance | 3 in |
|---|---|
| Wheelbase | 55 in |
| Overall Width | 44 in |
| Turning Radius | 83 in |
| Overall Height - mast lowered | 84 in |
| Length to Fork Face | 97 in |
| Height to Top of Overhead Guard | 81 in |
| Max Fork Height | 131 in |
Mast
| Load Capacity | 6,614 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 1.2 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 6 ° |
| Lower Speed | 1.1 mph |
