Mitsubishi
Caterpillar
120G

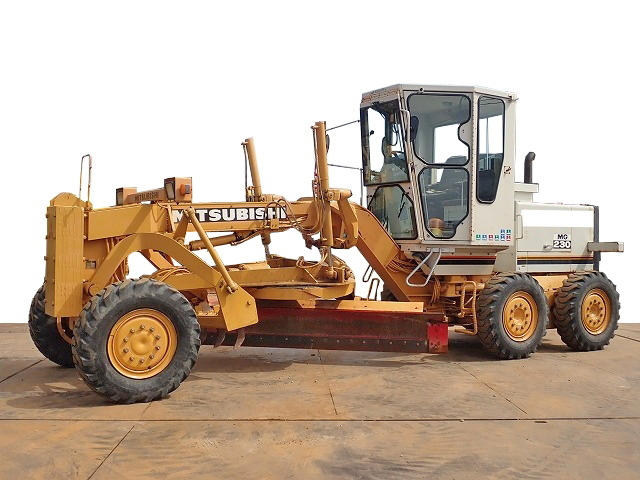

Motor Grader
17 specifications
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Std Operation Weight - Total | 20,635 lb |
|---|---|
| Tire Size | 11.00-20-10PR |
| Operating Voltage | 24 V |
Engine
| Engine Model | C 6D34-TE1 |
|---|---|
| Displacement | 358 in³ |
| Power Measured @ | 2,500 rpm |
| Max Power | 115.0 hp |
| Net Power Gear 5-6 | 115.0 hp |
Dimensions
| Wheelbase | 209 in |
|---|---|
| Overall Length | 289 in |
| Width Over Tires | 86 in |
| Height to Top of Isomount Cab | 108 in |
Transmission
| Max Speed - Forward | 27.5 mph |
|---|---|
| Max Speed - Reverse | 28.0 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 6 |
| Transmission Type | power shift planetary gear hydraulically actuated |
Moldboard
| Moldboard Height | 24 in |
|---|---|
| Moldboard Width | 122 in |
| Moldboard Thickness | 1 in |
Steering System
| Turning Radius | 236,221 in |
|---|
