Mitsubishi

MG430

Motor Grader

Max Power
155.0 hp
Net Power Gear 5-6
155.0 hp
All motor graders

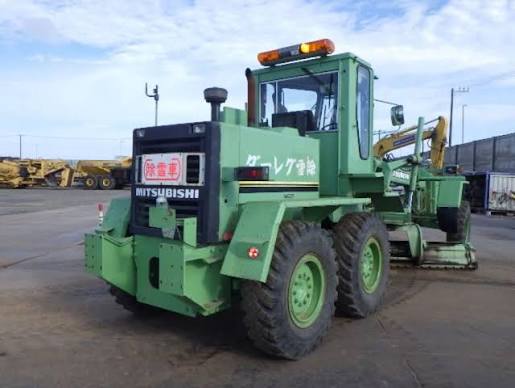

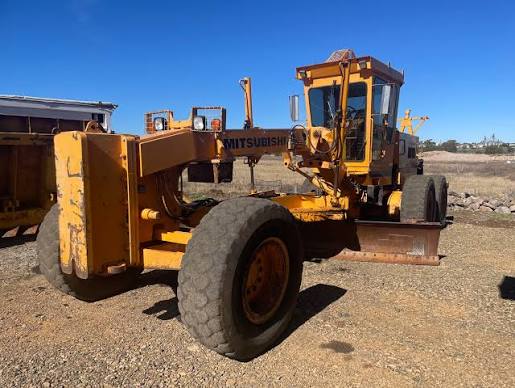

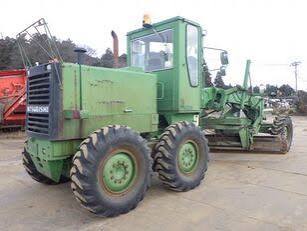

Mitsubishi MG430 Motor Grader
1 / 5
Image 1 of 5
Image: machinio.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Std Operation Weight - Total26,874 lb
Tire Size13.00-24-10PR
Operating Voltage24 V

Engine

Engine specifications
Engine ModelC 6D16-T
Displacement461 in³
Power Measured @2,000 rpm
Max Power155.0 hp
Net Power Gear 5-6155.0 hp

Dimensions

Dimensions specifications
Wheelbase247 in
Overall Length335 in
Width Over Tires96 in
Height to Top of Isomount Cab121 in

Transmission

Transmission specifications
Max Speed - Forward28.1 mph
Max Speed - Reverse28.6 mph
Number of Gears - Forward6
Number of Gears - Reverse6
Transmission Typepower shift planetary gear hydraulically actuated

Moldboard

Moldboard specifications
Moldboard Height24 in
Moldboard Width146 in
Moldboard Thickness1 in

Steering System

Steering System specifications
Turning Radius272 in
