MST
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

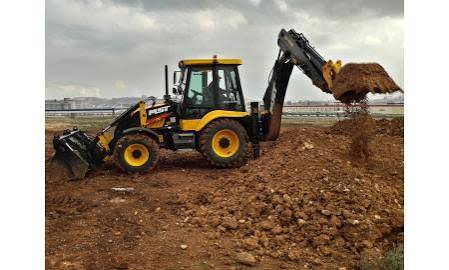

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight 2wd | 19,290 lb |
|---|---|
| Fuel Capacity | 27.8 gal |
| Hydraulic System Fluid Capacity | 40.2 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Tire Size Front - 2wd / 4wd | 16.9 x 14x28 12 ply |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.2 gal |
| Alternator Supplied Amperage | 65 A |
| Turning Radius | 207 in |
| Rear Axle Fluid Capacity | 3.5 gal |
| Front Axle Fluid Capacity | 2.3 gal |
Engine
| Engine Model | 1104C-44T |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 99.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,350 rpm |
| Net Max Torque | 306 lb-ft |
Hydraulic System
| Pump Flow Capacity | 41.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,626 psi |
| Pump Type | Helical gear type tandem pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 90 in |
| Transport Width | 95 in |
| Transport Length | 223 in |
| Height to Top of Suspended Cab | 120 in |
Transmission
| Max Speed | 26.1 mph |
|---|---|
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Auto Powershift low speed gearbox |
Tires & Wheels
| Rear Tires Size | 16.9 x 14x28 12 ply |
|---|
Backhoe
| Dig Depth | 214 in |
|---|---|
| Reach From Swivel | 268 in |
| Load Height - Extended | 170 in |
| Bucket Dig Force | 10,560 lb |
| Load Height | 144 in |
Loader
| Bucket Capacity | 1.50 yd³ |
|---|---|
| Clearance at Max Dump Height | 103 in |
| Bucket Breakout Force | 17,174 lb |
| Reach at Max Dump Height | 39 in |
| Dig Depth | 6 in |
