Mustang

2099

Skid Steer Loader

Operating Weight
10,181 lb
Max Speed
6.5 mph
Gross Power
85.9 hp
All skid steer loaders

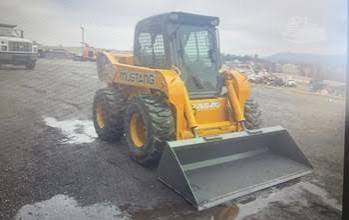

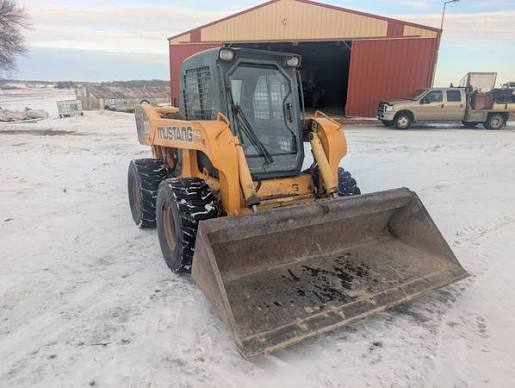

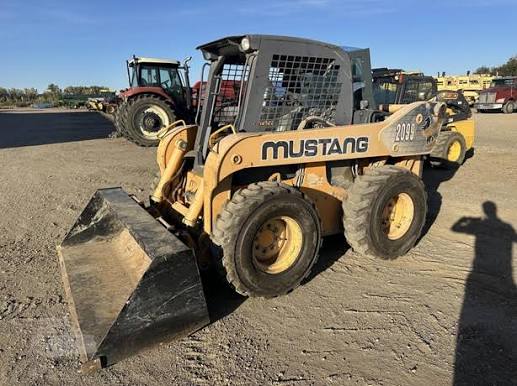

Mustang 2099 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,181 lb
Max Speed6.5 mph
Fuel Capacity29.1 gal
Hydraulic System Fluid Capacity15.4 gal
Tire Size14x17.5
Operating Voltage12 V
Alternator Supplied Amperage950 A

Engine

Engine specifications
Engine Model1104C-E44
Displacement269 in³
Power Measured @2,400 rpm
Gross Power85.9 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity29.0 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab81 in
Wheelbase55 in
Width Over Tires81 in
Reach at Max Lift and Dump37 in
Length with Bucket159 in
Clearance at Max Lift and Dump110 in
Turning Radius from Center - inc bucket99 in
Turning Radius from Center - machine rear81 in
Length w/o Bucket122 in

Loader

Loader specifications
Operating Load Rating3,400 lb
Tipping Angle6,800 °
Breakout Force7,880 psi
