Mustang
Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

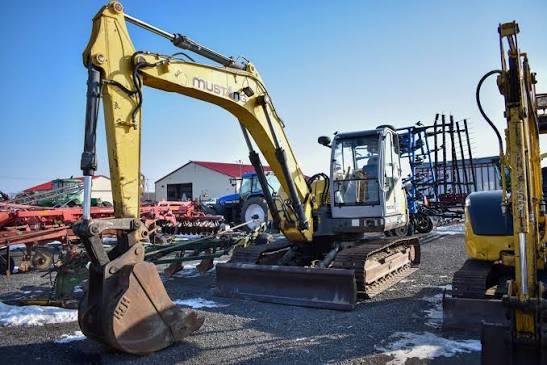

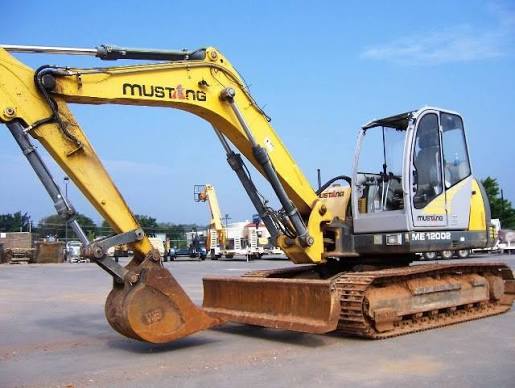

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 25,397 lb |
|---|---|
| Hydraulic Pump Flow Capacity | 69.2 gal/min |
| Hydraulic System Relief Valve Pressure | 3,770 psi |
Engine
| Engine Model | 4045TF270 |
|---|---|
| Displacement | 276 in³ |
| Gross Power | 99.0 hp |
| Net Power | 90.0 hp |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 110 in |
| Length of Track on Ground | 104 in |
| Tail Swing Radius | 66 in |
| Width to Outside of Tracks | 95 in |
| Removal Counterweight Clearance | 24 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.9 mph |
| Shoe Size | 20 in |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 29,542 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Reach Along Ground | 296 in |
| Max Loading Height | 233 in |
| Max Vertical Wall Digging Depth | 209 in |
| Max Cutting Height | 315 in |
| Shipping Length of Unit | 280 in |
| Shipping Height of Unit | 110 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.90 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
