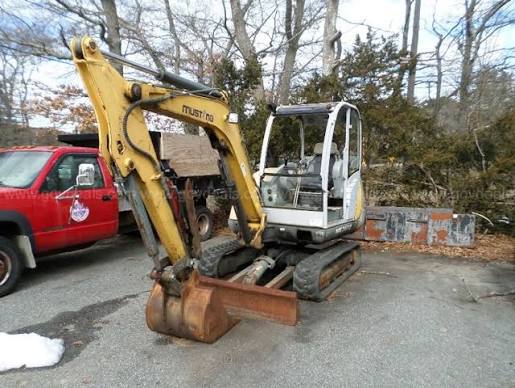

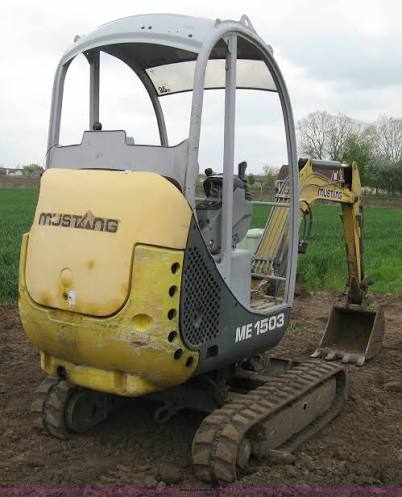

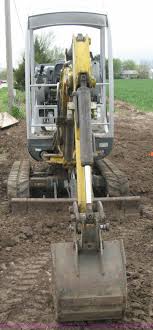

Mustang
JCB
8010 CTS
Mini Excavator
34 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 3,759 lb |
|---|---|
| Hydraulic Pump Flow Capacity | 18.7 gal/min |
| Hydraulic System Relief Valve Pressure | 2,900 psi |
Engine
| Engine Model | 3TVN76-SNS |
|---|---|
| Displacement | 68 in³ |
| Gross Power | 26.0 hp |
| Net Power | 18.0 hp |
| Number of Cylinders | 3 |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 95 in |
| Length of Track on Ground | 48 in |
| Tail Swing Radius | 11 in |
| Width to Outside of Tracks | 9 in |
| Removal Counterweight Clearance | 9 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 49 in |
| Number of Track Rollers per Side | 3 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 9 in |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 4,343 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 86 in |
|---|---|
| Max Reach Along Ground | 145 in |
| Max Vertical Wall Digging Depth | 57 in |
| Max Loading Height | 101 in |
| Shipping Length of Unit | 150 in |
| Max Cutting Height | 149 in |
| Shipping Height of Unit | 95 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.10 yd³ |
| Minimum Bucket Capacity | 0.10 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 94 in |
|---|---|
| Max Cutting Height | 168 in |
| Max Loading Height | 106 in |
| Max Vertical Wall Digging Depth | 66 in |
| Max Reach Along Ground | 154 in |
| Shipping Height of Unit | 95 in |
| Shipping Length of Unit | 150 in |
