Mustang
MTL20
- Operating Weight
- 9,590 lb
- Max Speed - high range
- 6.5 mph
- Displacement
- 189 in³
- Gross Power
- 80.5 hp
1 / 5

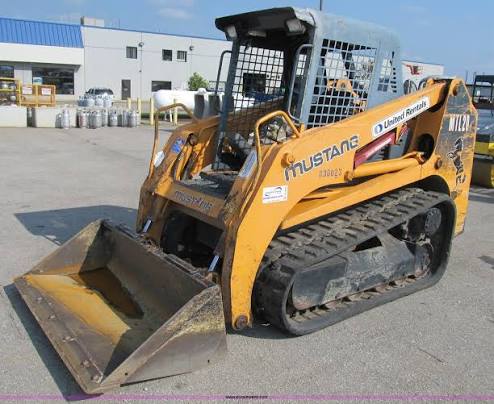

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 9,590 lb |
|---|---|
| Max Speed - high range | 6.5 mph |
| Max Speed - low range | 4.5 mph |
| Fuel Capacity | 23.8 gal |
| Hydraulic System Fluid Capacity | 22.0 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
| Engine Oil Capacity | 2.5 gal |
Engine
| Engine Model | 4JG1T |
|---|---|
| Displacement | 189 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 80.5 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,800 rpm |
| Peak Torque | 190 lb-ft |
Hydraulic System
| Pump Flow | 19.9 gal/min |
|---|---|
| Relief Valve Pressure | 2,988 psi |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 86 in |
| Reach at Max Lift and Dump | 35 in |
| Width Over Tracks | 71 in |
| Length with Bucket | 146 in |
| Clearance at Max Lift and Dump | 96 in |
| Turning Radius from Center - inc bucket | 90 in |
| Turning Radius from Center - machine rear | 66 in |
| Length - without Bucket | 117 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 60 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 4 |
| Ground Contact Area | 1,060 in³ |
| Track Gauge | 53 in |
Loader
| Bucket Capacity | 0.80 yd³ |
|---|---|
| Tipping Angle | 5,953 ° |
| Operating Load | 2,976 lb |
| Breakout Force | — |
