Nagano

NS45

Mini Excavator

Operating Weight
9,833 lb
Max Digging Depth
142 in
Net Power
43.2 hp
All mini excavators

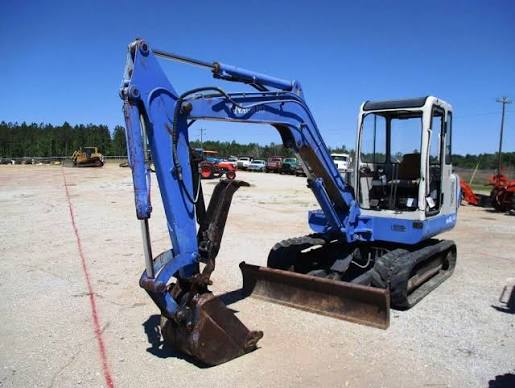

Nagano NS45 Mini Excavator
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,833 lb
Hydraulic Pump Flow Capacity15.9 gal/min

Engine

Engine specifications
Displacement149 in³
Power Measured @2,400 rpm
Net Power43.2 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Length of Track on Ground76 in
Tail Swing Radius61 in
Width to Outside of Tracks73 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth142 in
Max Reach Along Ground227 in
Max Vertical Wall Digging Depth113 in
Max Loading Height152 in
Shipping Length of Unit223 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
