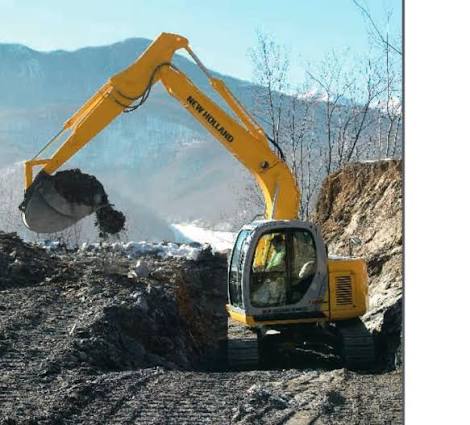

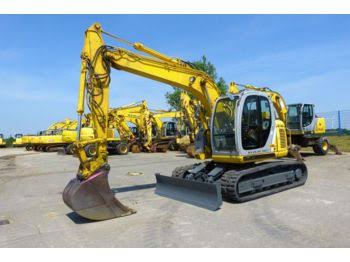

New Holland
Hitachi
EX135USR
Excavator
23 specifications
New Holland
115SR
- Operating Weight
- 28,219 lb
- Max Digging Depth
- 189 in
- Max Digging Depth
- 200 in
- Net Power
- 81.0 hp
1 / 5
Image 1 of 5
Specifications
52 data points
Operating Specifications
| Operating Weight | 28,219 lb |
|---|---|
| Fuel Capacity | 44.4 gal |
| Hydraulic Pump Flow Capacity | 62.4 gal/min |
| Hydraulic System Fluid Capacity | 37.0 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.5 gal |
| Alternator Supplied Amperage | 30 A |
Engine
| Engine Model | - 4BG1TA |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,050 rpm |
| Net Power | 81.0 hp |
| Aspiration | Turbo |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 55 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.8 mph |
| Shoe Size | 20 in |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Reach Along Ground | 288 in |
| Max Loading Height | 220 in |
| Max Vertical Wall Digging Depth | 156 in |
| Max Cutting Height | 315 in |
| Shipping Length of Unit | 272 in |
| Shipping Height of Unit | 111 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 200 in |
|---|---|
| Max Vertical Wall Digging Depth | 178 in |
| Max Cutting Height | 322 in |
| Max Loading Height | 228 in |
| Max Reach Along Ground | 300 in |
| Shipping Length of Unit | 272 in |
| Shipping Height of Unit | 111 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 220 in |
|---|---|
| Max Cutting Height | 335 in |
| Max Loading Height | 241 in |
| Max Vertical Wall Digging Depth | 192 in |
| Max Reach Along Ground | 318 in |
| Shipping Length of Unit | 272 in |
| Shipping Height of Unit | 111 in |
