New Holland

555E

Backhoe Loader

Max Speed
20.1 mph
Gross Power
83.0 hp
Net Power
79.0 hp
All backhoe loaders

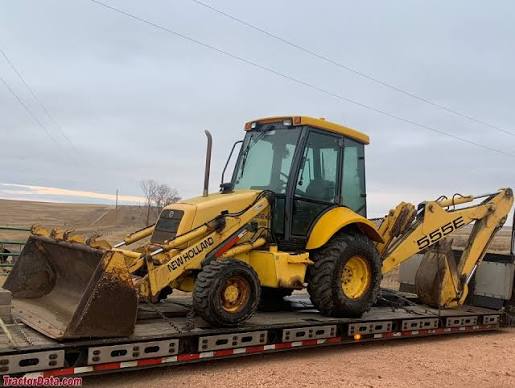

New Holland 555E Backhoe Loader
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd16,005 lb
Operating Weight 2wd14,241 lb
Fuel Capacity28.0 gal
Hydraulic System Fluid Capacity36.2 gal
Cooling System Fluid Capacity6.3 gal
Tire Size Front - 2wd / 4wd11L-16 / 12-16.5
Operating Voltage12 V
Oil System Fluid Capacity4.5 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelBSD 450NA
Displacement305 in³
Gross Power83.0 hp
Net Power79.0 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Engine MakeNew Holland
Stroke5 in
Bore5 in
Net Max Torque213 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.0 gal/min
Relief Valve Pressure2,850 psi
Pump TypeOpen center

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase86 in
Transport Width90 in
Transport Length281 in
Height to Top of Suspended Cab113 in
Rear Tread Range68 in
Front Wheel Tread Width74 in

Transmission

Transmission specifications
Max Speed20.1 mph
Max Speed - Reverse25.0 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypePower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size19.5Lx24

Backhoe

Backhoe specifications
Dig Depth174 in
Reach From Swivel222 in
Bucket Dig Force8,070 lb
Load Height144 in

Loader

Loader specifications
Clearance at Max Dump Height86 in
Bucket Breakout Force13,250 lb
Bucket Width88 in
Reach at Max Dump Height31 in
