New Holland
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

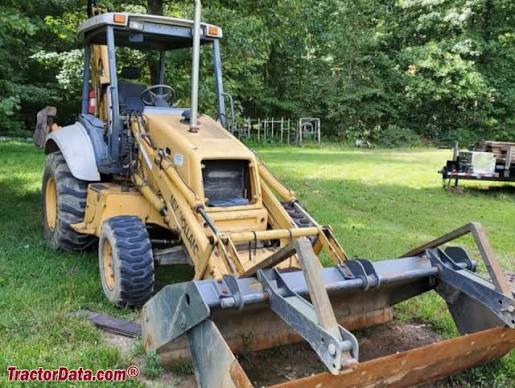

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight 4wd | 16,314 lb |
|---|---|
| Operating Weight 2wd | 14,341 lb |
| Fuel Capacity | 28.0 gal |
| Hydraulic System Fluid Capacity | 36.2 gal |
| Cooling System Fluid Capacity | 6.3 gal |
| Tire Size Front - 2wd / 4wd | 11L-16 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 4.5 gal |
| Alternator Supplied Amperage | 70 A |
| Max Weight | 14,341 lb |
Engine
| Engine Model | BSD 450 T |
|---|---|
| Displacement | 305 in³ |
| Gross Power | 100.0 hp |
| Net Power | 98.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | New Holland |
| Stroke | 5 in |
| Bore | 5 in |
| Net Max Torque | 304 lb-ft |
Hydraulic System
| Pump Flow Capacity | 38.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,850 psi |
| Pump Type | Open center |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 90 in |
| Transport Length | 283 in |
| Height to Top of Suspended Cab | 113 in |
Transmission
| Max Speed | 20.1 mph |
|---|---|
| Max Speed - Reverse | 25.0 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power shuttle |
Tires & Wheels
| Rear Tires Size | 19.5Lx24 |
|---|
Backhoe
| Dig Depth | 186 in |
|---|---|
| Reach From Swivel | 234 in |
| Dig Depth - Extended | 233 in |
| Load Height - Extended | 181 in |
| Bucket Dig Force | 12,200 lb |
| Reach From Swivel - Extended | 277 in |
| Load Height | 152 in |
| Bucket Dig Force - Extended | 12,200 lb |
Loader
| Clearance at Max Dump Height | 107 in |
|---|---|
| Bucket Breakout Force | 12,900 lb |
| Bucket Width | 88 in |
| Reach at Max Dump Height | 31 in |
