434E
Backhoe Loader
37 specifications
1 / 5

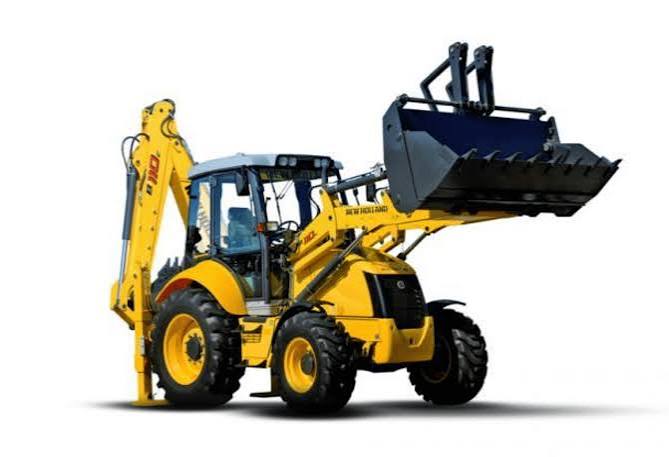

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight 4wd | 15,200 lb |
|---|---|
| Operating Weight 2wd | 14,814 lb |
| Fuel Capacity | 35.7 gal |
| Hydraulic System Fluid Capacity | 31.2 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Tire Size Front - 2wd / 4wd | 12-16.5 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 90 A |
| Turning Radius | 138 in |
| Max Weight | 17,373 lb |
Engine
| Engine Model | 445T/M2 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 1,400 rpm |
| Gross Power | 110.0 hp |
| Net Power | 107.3 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged & after cooled |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 354 lb-ft |
Hydraulic System
| Pump Flow Capacity | 42.1 gal/min |
|---|---|
| Relief Valve Pressure | 3,045 psi |
| Pump Type | Dual Gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 90 in |
| Transport Length | 281 in |
| Height to Top of Suspended Cab | 114 in |
Transmission
| Max Speed | 25.8 mph |
|---|---|
| Number of Forward Gears | 43,559 |
| Number of Reverse Gears | 43,557 |
| Transmission Type | Power-Reversing/Torque Conv (Powershift) |
Tires & Wheels
| Rear Tires Size | 19.5L-24 |
|---|
Backhoe
| Dig Depth | 181 in |
|---|---|
| Reach From Swivel | 230 in |
| Dig Depth - Extended | 227 in |
| Load Height - Extended | 182 in |
| Bucket Dig Force | 12,809 lb |
| Reach From Swivel - Extended | 274 in |
| Reach at Load Height - Extended | 115 in |
| Bucket Dig Force - Extended | 12,809 lb |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 107 in |
| Bucket Breakout Force | 13,942 lb |
| Bucket Width | 87 in |
| Reach at Max Dump Height | 30 in |
| Dig Depth | 5 in |
