New Holland

B110C

Backhoe Loader

Max Speed
23.0 mph
Gross Power
110.0 hp
Net Power
108.0 hp
All backhoe loaders

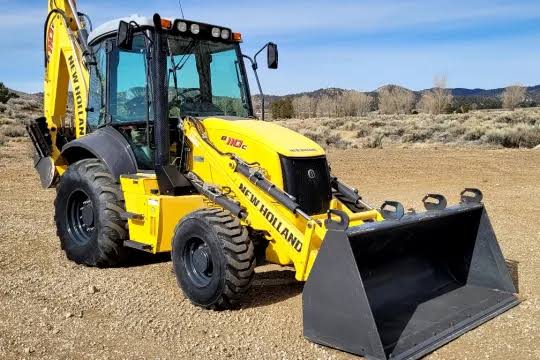

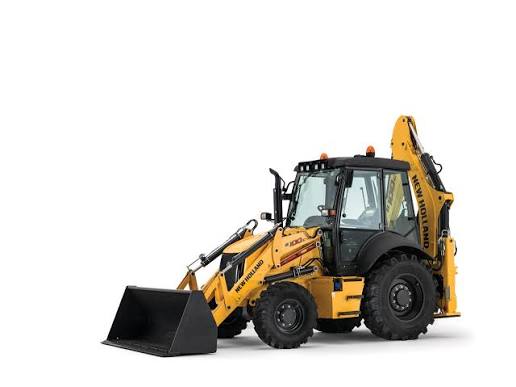

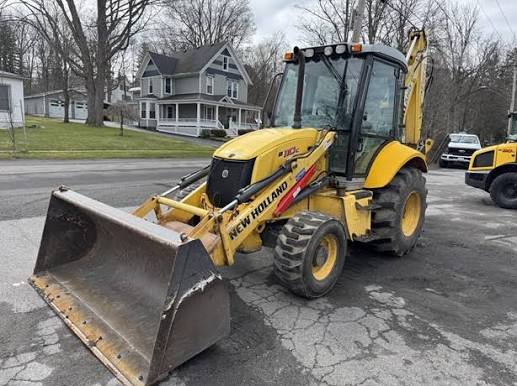

New Holland B110C Backhoe Loader
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

57 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,316 lb

Engine

Engine specifications
Engine ModelFPT F5HFL413B*A
Displacement207 in³
Gross Power110.0 hp
Net Power108.0 hp
Torque Measured @1,400 rpm
Net Max Torque344 lb-ft

Weights

Weights specifications
Base Unit18,523 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity40.0 gal/min
System relief pressure3,045 psi

Dimensions

Dimensions specifications
Transport Width91 in
Transport Length277 in
Height to Top of Suspended Cab114 in
Stabilizer operating127 in
Stabilizer spread127 in

Transmission

Transmission specifications
Max Speed23.0 mph
POWER SHUTTLE Gear forward4
POWER SHUTTLE Gear reverse4
POWERSHIFT Gear forward4
POWERSHIFT Gear reverse3
SHIFT Max Fwd travel speed22.1 mph
SHUTTLE Max forward speed22.5 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank34.7 gal
Hydraulic system36.2 gal
Engine Oil2.2 gal
Cooling system6.4 gal
Hydraulic Tank13.4 gal
DEF Tank3.5 gal

General Specifications

General Specifications specifications
Operating Weight lbs (kg)18,525 (8,403) Starting 2019 Model Year
Max Digging Depth ft. (m)15.6 (4.72) Starting 2019 Model Year
Backhoe Loading Height ft. (m)12.4 (3.85) Starting 2019 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)23.9 (38.5) Starting 2019 Model Year
Loader SAE HP (kw)110 (82) Starting 2019 Model Year
Loader Lift Capacity lbs. (kg)7,996 (3,627) Starting 2019 Model Year
Loader Breakout Force lbs. (kg)10,294 (4,669) Starting 2019 Model Year

Backhoe

Backhoe specifications
Bucket capacity7,408.02 yd³
Bucket capacity - Extended21.70 yd³
Max dig depth187 in
Max dig depth - Extended228 in
Dig Depth186 in
Load Height156 in
Loading Height149 in
Bucket digging force12,970 lb
Bucket digging force - Extended19 lb
Crowd digging force8,527 lb
Crowd digging force - Extended20 lb
Loading Height - Extended175 in
Loading Reach @ max height64 in
Loading Reach @ max height - Extended95 in
Max pin height197 in
Max pin height - Extended211 in
Reach from swing post215 in
Reach from swing post - Extended253 in

Loader

Loader specifications
Lift Capacity7,996 lb
Bucket Breakout Force17,436 lb
Reach at Max Dump Height29 in
Height to hinge pin138 in
