New Holland

B90B

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
20.0 mph
Gross Power
97.0 hp
Net Power
95.0 hp
All backhoe loaders

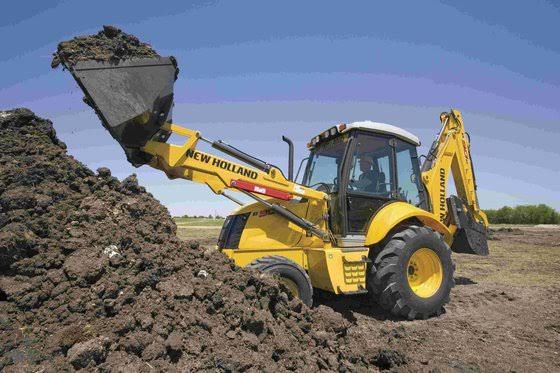

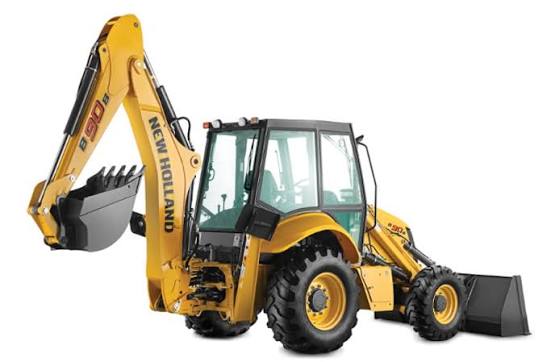

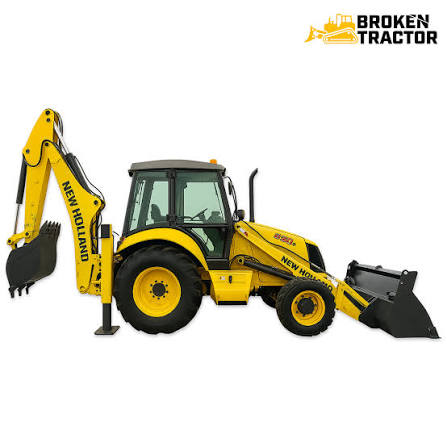

New Holland B90B Backhoe Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,677 lb
Fuel Capacity38.4 gal
Cooling System Fluid Capacity6.4 gal
Tire Size Front - 2wd / 4wd18 inches
Operating Voltage12 V
Alternator Supplied Amperage900 A
Turning Radius170 in
Max Weight17,571 lb

Engine

Engine specifications
Displacement275 in³
Power Measured @2,200 rpm
Gross Power97.0 hp
Net Power95.0 hp
AspirationTurbocharged
Torque Measured @1,250 rpm
Net Max Torque295 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity39.9 gal/min
Relief Valve Pressure2,973 psi
Pump TypeTwin Gear Pump

Dimensions

Dimensions specifications
Wheelbase86 in
Transport Width93 in
Transport Length230 in
Height to Top of Suspended Cab117 in

Transmission

Transmission specifications
Max Speed20.0 mph
Transmission TypePowershift

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size26 inches

General Specifications

General Specifications specifications
Operating Weight lbs (kg)15,677 (7,111) — Starting 2009 Model Year
Max Digging Depth ft. (m)14.4 (4.4) — Starting 2011 Model Year
Lift Capacity lbs (kgs)7,690 (3,488) — Starting 2010 Model Year
Loading Height ft (m)12.0 (3.67) — Starting 2010 Model Year
4th Gear Fwd mph (kmh)20 (32.2) — Starting 2010 Model Year
Backhoe Loading Height ft. (m)12.0 (3.67) — Starting 2011 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)20 (32.2) — Starting 2009 Model Year
Breakout Force lbs (kgs)14,454 (6,556) — Starting 2010 Model Year
Digging Depth ft (m)14.4 (4.4) — Starting 2010 Model Year
Loader SAE HP (kw)95 (71) — Starting 2011 Model Year
Loader Lift Capacity lbs. (kg)7,690 (3,488) — Starting 2009 Model Year
Loader Breakout Force lbs. (kg)14,454 (6,556) — Starting 2011 Model Year
SAE HP (KW)95 (71) — Starting 2010 Model Year
Weight lbs (kg)15,677 (7,111) — Starting 2010 Model Year

Backhoe

Backhoe specifications
Dig Depth186 in
Reach From Swivel53 in
Dig Depth - Extended227 in
Load Height - Extended256 in
Bucket Dig Force13,827 lb
Reach at Load Height - Extended126 in

Loader

Loader specifications
Bucket Capacity1.40 yd³
Lift Capacity7,690 lb
Clearance at Max Dump Height110 in
Bucket Breakout Force15,512 lb
Reach at Max Dump Height31 in
Dig Depth3 in
